IP65 LED Strip Lights
HST-COB528-IP65 | 10mm 528 LEDs/m COB LED Strip IP65
HST-COB528-IP65 is a 10mm PCB COB LED strip with 528 LEDs/m, 14 W/m power and IP65 waterproof rating at 12V/24V DC. CRI 90+ delivers dot-free linear illumination for outdoor, hospitality and commercial wet-area applications. Lead time 10-12 calendar days, no MOQ. OEM/ODM covers CCT, cable and packaging, subject to requirements. Specify voltage, CCT, length and quantity when requesting a quote.
Specifications
- Model
- HST-COB528-IP65
- LED Type
- COB LED
- LED Density
- 528 LEDs/m
- PCB Width
- 10 mm
- Voltage
- 12V / 24V DC
- Power
- 14 W/m
- Color Temperature
- 2700K / 3000K / 4000K / 6000K
- CRI
- Ra 90+
- IP Rating
- IP65
- Cutting Unit
- 22.73 mm (12V) / 45.45 mm (24V)
HST-COB528-IP65 528 LEDs/m COB LED Strip — IP65 Waterproof
HST-COB528-IP65 is a 10mm PCB COB (Chip on Board) LED strip with 528 LEDs/m density, 14 W/m power and IP65 waterproof protection. Available in both 12V and 24V DC configurations with CRI Ra 90+ for dot-free linear illumination in moisture-prone and protected outdoor environments. This product is supplied as a standard configuration without a minimum order quantity, with a lead time of 10-12 calendar days.
Key Specifications
Parameter | Value |
|---|---|
Model | HST-COB528-IP65 |
LED Type | COB (Chip on Board) |
LED Density | 528 LEDs/m |
PCB Width | 10 mm |
Voltage | 12V / 24V DC |
Power | 14 W/m |
Color Temperature | 2700K / 3000K / 4000K / 6000K |
CRI | Ra 90+ |
IP Rating | IP65 |
Cutting Unit | 22.73 mm (12V) / 45.45 mm (24V) |
Availability & Lead Time
Item | Value |
|---|---|
Configuration | IP65 (standard) |
Availability | Standard stock configuration |
Minimum Order Quantity | No minimum order quantity |
Lead Time | 10-12 calendar days |
There is no minimum order quantity for this product. Small quantities can be produced for testing, samples or project use. Lead time is 10-12 calendar days after order confirmation.
Lead time above is in calendar days and does not include shipping time. Shipping time depends on the destination and selected shipping method.
Why Choose HST-COB528-IP65
- Dot-free waterproof illumination — COB technology eliminates individual LED hotspots while IP65 sealing protects against moisture and dust.
- Ultra-high LED density — 528 LEDs/m provides exceptional uniformity with no visible gaps between light-emitting areas.
- Dual voltage flexibility — Both 12V and 24V DC options allow integration into existing power systems or new installations.
- CRI 90+ color rendering — Ra 90+ ensures accurate color representation even in wet-area applications.
- IP65 for moisture-prone locations — Suitable for protected outdoor areas, kitchens, bathrooms and other damp environments.
IP65 Protection Details
HST-COB528-IP65 uses a silicone coating or glue-potting process to achieve IP65 rating, protecting the LED chips and circuitry from:
- Water jets from any direction (low-pressure)
- Dust and particle ingress
- Humidity and condensation in damp environments
Note: IP65 is suitable for protected outdoor locations and indoor wet areas but is not designed for full submersion. For underwater or fully submerged applications, please consider our IP68 COB LED strip options.
Typical Applications
HST-COB528-IP65 is designed for applications requiring dot-free linear lighting in moisture-prone environments:
- Outdoor signage and facade lighting — Protected exterior installations where the strip is sheltered from direct rain exposure.
- Hospitality wet areas — Hotel bathroom vanity lighting, covered outdoor terraces and poolside accent lighting (protected from direct water spray).

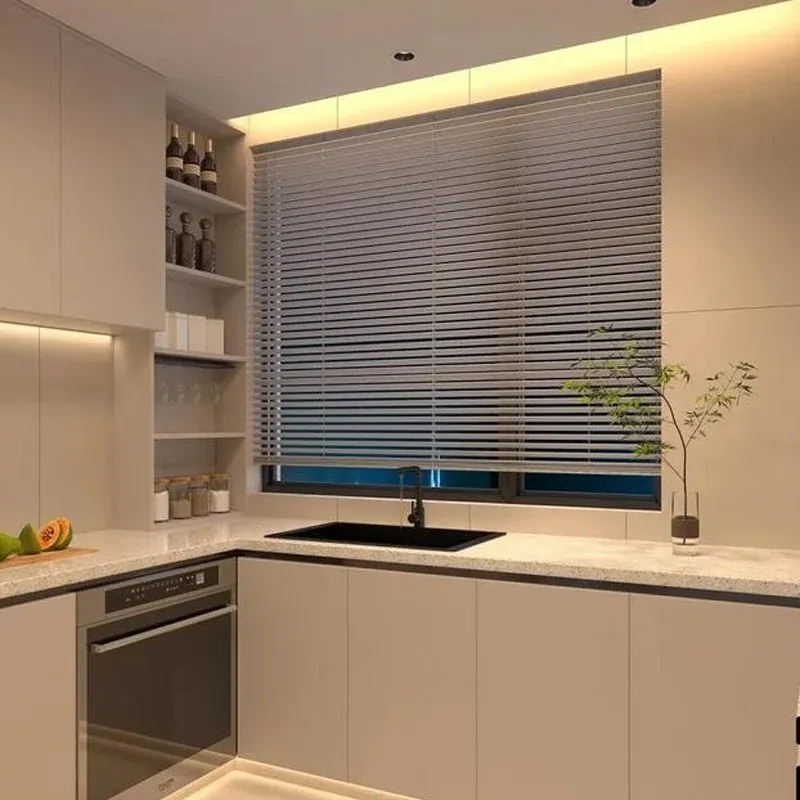

- Kitchen and under-cabinet lighting — Areas subject to splashes and humidity such as under-counter lighting and range hood illumination.
- Retail display lighting — Refrigerated display cases, floral department lighting and outdoor shop-front signage.
- Architectural cove lighting — Exterior building cornices, canopy undersides and covered walkway lighting.
For fully submerged or high-pressure water exposure applications, please consider the IP68 version of this product (made to order, 12-15 days lead time).
COB vs SMD LED Strip — Which One to Choose
Feature | COB (This Product) | SMD (e.g., SMD2835/SMD3528) |
|---|---|---|
Light Appearance | Smooth, dot-free line of light | Individual LED dots visible at close range |
LED Density | Up to 528 LEDs/m | Typically 60–240 LEDs/m |
CRI | Typically Ra 90+ | Typically Ra 80+ (Ra 90+ available on select models) |
Heat Distribution | Even across COB surface | Concentrated at each SMD chip |
Best For | Close-range viewing, reflective surfaces, premium applications | General lighting, cost-sensitive projects, longer runs |
Price | Higher due to denser chip arrangement | More economical per meter |
Choose COB when the light source may be visible and you need the smoothest possible output. Choose SMD when you need a cost-effective solution for general illumination where the light source is hidden in a profile or diffuser.
Quality & Documentation
- Each reel is tested before shipment to verify light uniformity, color consistency, CRI performance, power consumption and IP65 seal integrity.
- Compliance documents can be provided for applicable product configurations upon request. Please tell us the target market and required product configuration so the relevant documents can be checked.
Selection Tip
For first-time users of COB LED strips in wet-area applications, we recommend requesting a sample reel to evaluate the dot-free light output, color temperature, CRI 90+ performance and IP65 seal quality before committing to a larger order. Test the sample in conditions that simulate your actual installation environment to confirm suitability.
Request a Quote or Sample
Looking for a waterproof dot-free COB LED strip for your moisture-prone lighting project?
Send us your required specifications: voltage, color temperature, approximate length and quantity. Our team will review your requirements and help you evaluate a suitable configuration for your project. There is no minimum order quantity. Lead time is 10-12 calendar days.
OEM / Customization
OEM/ODM options may include color temperature, CRI, cable type and length, connector type, packaging and private labeling, subject to technical feasibility and order quantity. Please share your project specifications and application details for evaluation.
FAQ
Q1: Can I request COB LED strip samples before bulk production?
Yes. Samples are available for evaluation. We recommend ordering a sample reel to test the dot-free light output, color consistency, CRI 90+ performance, IP65 seal quality and compatibility with your installation environment before placing a larger order. Please tell us the target specifications and application so that the correct configuration can be prepared.
Q2: What customization options are available for COB LED strips?
Customization options may include color temperature, CRI, cable type and length, connector type, packaging and private labeling. Customization is subject to product feasibility, order quantity and project requirements. Please share your project specifications and application details for evaluation.
Q3: What is the maximum running length of HST-COB528-IP65?
The maximum running length depends on the voltage, power supply capacity and wire gauge. At 12V DC with 14 W/m power consumption, voltage drop occurs more quickly than at 24V. At 24V DC, longer runs are possible before power injection is needed. Please tell us your planned installation length and voltage so that we can advise on power supply requirements.
Q4: What applications are suitable for HST-COB528-IP65?
This product is designed for moisture-prone and protected outdoor applications requiring smooth, dot-free linear lighting with excellent color rendering: outdoor signage, hospitality wet areas (bathrooms, covered terraces), kitchen under-cabinet lighting, refrigerated retail displays and architectural cove lighting in damp environments. The IP65 rating protects against water jets and dust but is not suitable for full submersion.
Q5: What is the difference between COB and SMD LED strips?
COB (Chip on Board) technology mounts multiple LED chips directly onto a single substrate, creating a smooth, dot-free line of light with typically higher CRI. SMD (Surface Mount Device) technology uses individual LED packages mounted at intervals, which may show visible dots at close range but offer a more economical solution for general lighting. See the comparison table above for details.
Q6: Is HST-COB528-IP65 available in both 12V and 24V?
Yes. This model is available in both 12V and 24V DC configurations. Please note that 12V configurations have a shorter maximum running length due to higher current and voltage drop over distance. If your installation requires longer runs without additional power injection, 24V is recommended.
Q7: What is the difference between IP65 and IP68 for COB strips?
IP65 protects against low-pressure water jets from any direction and dust ingress — suitable for protected outdoor areas and indoor wet locations (kitchens, bathrooms, covered terraces). IP68 provides full submersion protection for underwater applications. IP65 is a standard configuration with 10-12 days lead time; IP68 is made to order with 12-15 days lead time. Choose based on your actual water exposure level.
Q8: Can you provide compliance documents?
Compliance documents can be provided for applicable product configurations upon request. Please tell us the target market and required product configuration so the relevant documents can be checked.
Q9: Is there a minimum order quantity, and how long does production take?
There is no minimum order quantity for this product. Small quantities can be ordered for testing, samples or project use. Lead time is 10-12 calendar days after order confirmation. Please tell us the required quantity and your target delivery date so that the production schedule can be confirmed.
Q10: Can this COB strip be used underwater?
No. HST-COB528-IP65 is rated IP65, which protects against water jets and dust but is not designed for submersion. If you need underwater or fully immersed lighting, please inquire about our IP68 COB LED strip options, which are made to order with a 12-15 day lead time.
