Aluminum Profiles
HST-MC1616 | 16×16mm Corner LED Aluminum Profile

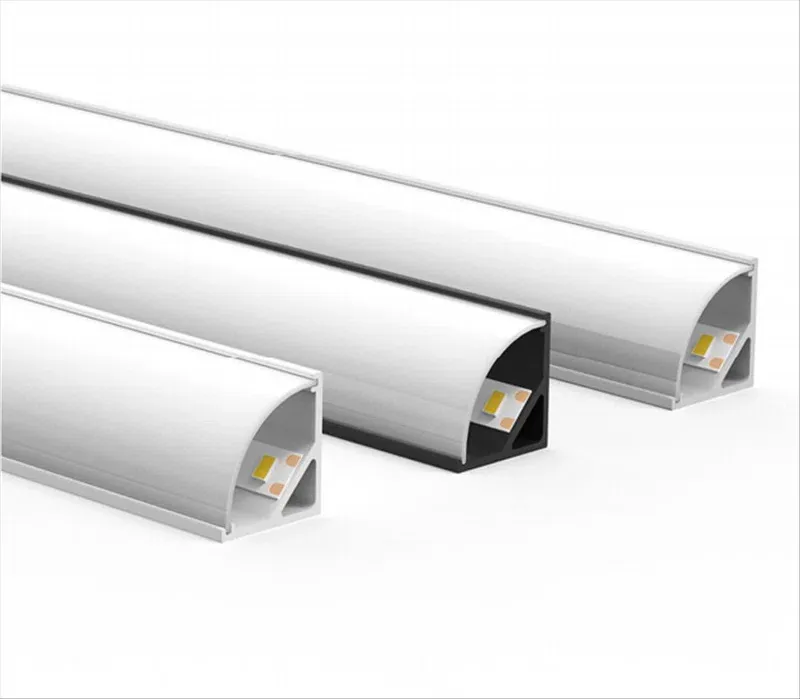

HST-MC1616 is a 16×16mm corner LED aluminum profile (6063-T5) for COB and SMD strips. It offers mechanical protection, heat dissipation and a clean linear finish. Available in white, silver and black with opal or semi-clear PC diffusers, end caps and mounting clips. Ideal for cabinet, furniture, display and architectural corner lighting. Max 6m/piece. Specify color, diffuser, length and quantity for a quote.
Specifications
- Model
- HST-MC1616
- Material
- Aluminum 6063-T5
- Dimension
- 16mm × 16mm
- Length
- Max 6m
- Installation
- Corner Installation / Surface Mounted
- Surface Treatment
- White / Silver / Black
- IP Rating
- IP20
- Certification
- ISO9001 / CE / RoHS

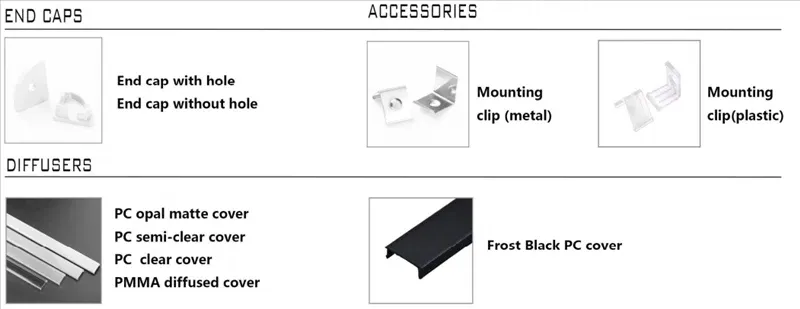

- Accessories
- End Cap / Mounting Clip
- Diffuser Options
- PC Opal Cover / PC Semi-clear Cover / PC Clear Cover / PMMA Diffused Cover / Frost Black PC Cover
HST-MC1616 16×16mm Corner LED Aluminum Profile

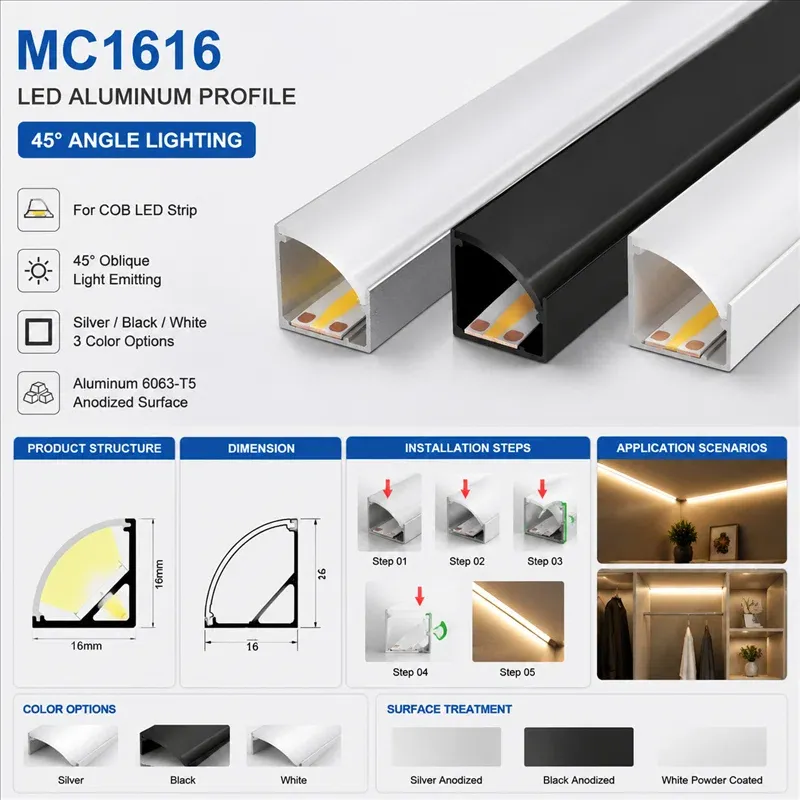

HST-MC1616 is a corner-mounted LED aluminum profile extruded from 6063-T5 aluminum alloy with a compact 16mm × 16mm cross-section. It is designed to house COB or SMD LED strips and provide mechanical protection, heat dissipation and a finished linear lighting appearance for corner installations. The profile is rated IP20 for indoor dry-location use.
Key Specifications
Parameter | Value |
|---|---|
Model | HST-MC1616 |
Material | Aluminum 6063-T5 |
Dimension | 16 mm × 16 mm |
Max Length | 6 m per piece |
Installation | Corner Mount / Surface Mount |
Surface Treatment | White / Silver / Black |
Diffuser Options | PC Opal Cover / PC Semi-Clear Cover |
IP Rating | IP20 (indoor dry locations) |
Certification | ISO9001 / CE / RoHS |
Accessories | End Cap / Mounting Clip |
Surface Treatment Options
Finish | Description | Best For |
|---|---|---|
White | Powder-coated white finish | Cabinet interiors, ceilings, clean modern looks |
Silver | Natural anodized aluminum | Industrial style, exposed installations, metallic aesthetics |
Black | Powder-coated black finish | Accent lighting, contrast applications, premium fixtures |
Please specify the required surface treatment color when requesting a quote. Custom colors may be available subject to order quantity — please share your requirements for evaluation.
Diffuser Options
Diffuser Type | Light Effect | Best For |
|---|---|---|
PC Opal Cover | Soft, even light diffusion with no visible LED dots | COB strips, close-range viewing, glare reduction |
PC Semi-Clear Cover | Higher light transmission with slight LED visibility | SMD strips where maximum brightness is preferred |
Both diffuser types are made from polycarbonate (PC) material for impact resistance and UV stability.

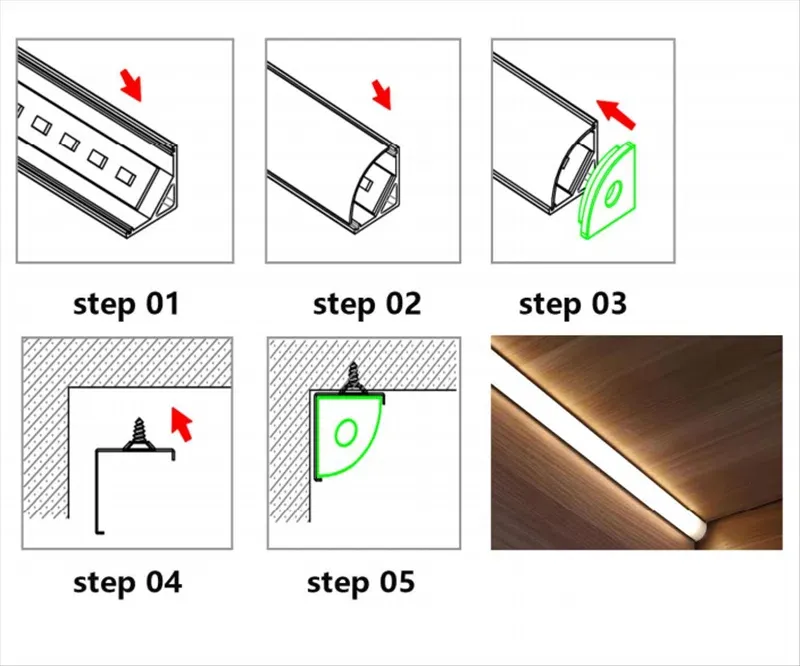

Installation Methods
HST-MC1616 supports two installation approaches:
- Corner mount — The 90-degree angle fits neatly into inside corners where two surfaces meet, such as cabinet undershelf-to-side-wall junctions or ceiling-to-wall corners.
- Surface mount — Can also be mounted directly onto flat surfaces using the included mounting clips when corner placement is not required.
Mounting clips and end caps are available as accessories. Please confirm your installation method and quantity so that the correct number of accessories can be supplied.
Typical Applications
HST-MC1616 is designed for indoor linear lighting projects requiring a compact corner-profile solution:
- Cabinet and under-cabinet lighting — Mounted at the junction between cabinet bottom and side panel for seamless integrated lighting.
- Furniture lighting — Wardrobe interiors, shelving units, display cabinets and built-in storage compartments.
- Display lighting — Showcase edges, exhibition stands, retail shelving and product highlight lighting.

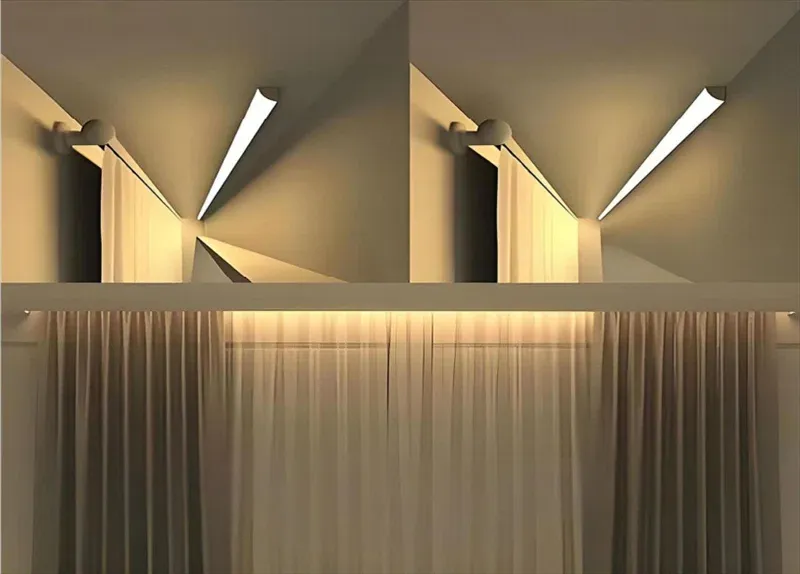

- Architectural corner lighting — Ceiling-to-wall coves, recessed niches and interior corner accent lines.
- Hospitality applications — Hotel room wardrobes, bar counter undersides and reception desk lighting.
Note: This profile is rated IP20 and is intended for indoor dry-location use only. For outdoor or wet-area installations, please consider our waterproof LED strip configurations paired with a sealed profile solution.
Quality & Material
- Extruded from 6063-T5 aluminum alloy for corrosion resistance and thermal conductivity.
- Anodized or powder-coated surface treatments available in white, silver and black.
- Each piece is inspected for dimensional accuracy, surface finish and straightness before packaging.
- Certifications: ISO9001 (quality management), CE (European conformity), RoHS (restriction of hazardous substances).
Selection Tip
When ordering HST-MC1616, please prepare the following information for an accurate quote:
- Surface treatment color — White, silver or black
- Diffuser type — Opal (soft diffusion) or semi-clear (higher transmission)
- Total length — In meters; max 6m per piece, longer runs require joining multiple pieces
- Quantity — Number of pieces or total meters
- Accessories — End caps (2 per piece) and mounting clips (quantity depends on length)
- LED strip compatibility — Confirm whether you plan to install COB or SMD LED strip inside the profile
Request a Quote
Looking for a compact 16×16mm corner aluminum profile for your LED strip installation?
Send us your requirements: surface treatment color, diffuser type, total length, quantity and LED strip model. Our team will confirm availability, lead time and pricing for your project.
FAQ
Q1: What LED strip widths fit inside HST-MC1616?
HST-MC1616 is designed to accommodate standard-width LED strips up to approximately 10–12mm PCB width. This includes most SMD2835, SMD3528, SMD2216 and COB LED strip products (typically 8mm or 10mm PCB). If you are using a wider LED strip, please confirm the exact PCB width so we can verify compatibility before ordering.
Q2: What is the maximum length per piece?
The maximum manufacturing length is 6 meters per piece. For installations requiring longer continuous runs, multiple pieces can be joined using internal connectors or butt-jointed with a small gap covered by the diffuser. Please tell us your total required run length so we can advise on the number of pieces and any joining accessories needed.
Q3: Can this profile be used outdoors?
HST-MC1616 is rated IP20 and is designed for indoor dry-location use only. It does not provide waterproof sealing on its own. For outdoor or wet-area installations such as bathrooms, kitchens or exterior lighting, we recommend pairing a waterproof LED strip (IP65/IP67/IP68) with a sealed profile solution. Please share your installation environment so we can recommend a suitable combination.
Q4: What is the difference between the opal and semi-clear diffuser?
The opal diffuser provides soft, even light diffusion that eliminates visible LED dots — ideal for COB strips or applications where the diffuser is visible at close range. The semi-clear diffuser allows more light through with higher transmission but may show slight LED dot patterns — suitable for SMD strips where maximum brightness is the priority and the diffuser is less visible.
Q5: What certifications does HST-MC1616 have?
This profile is manufactured under ISO9001 quality management system certification and complies with CE (European Conformity) and RoHS (Restriction of Hazardous Substances) requirements. If you need additional certifications for a specific target market, please tell us the country or region so we can check availability.
Q6: How do I cut the profile to my required length?
Profiles can be cut using a fine-toothed saw, miter saw or aluminum cutting machine. We can also supply pre-cut lengths if you provide the specific cut-list with quantities for each length. Pre-cutting service may be subject to minimum order quantities — please share your cut-list for evaluation.
Q7: What accessories are included, and what do I need to order separately?
Standard accessories include end caps (to close the profile ends) and mounting clips (for fixing the profile to the mounting surface). These are ordered separately based on your quantity — typically 2 end caps per profile piece and mounting clips spaced approximately 30–40cm apart. Please confirm your total profile length and piece count so we can calculate the recommended accessory quantities.
Q8: What is the difference between corner mount and surface mount?
Corner mount uses the 90-degree angle of the profile to fit into inside corners where two surfaces meet at a right angle — this is the primary design purpose of HST-MC1616. Surface mount installs the profile onto a flat surface using mounting clips, which is useful when corner placement is not desired or when the profile is used as a small surface-mounted channel. Both methods use the same mounting clip accessory.
Q9: Is there a minimum order quantity?
There is no fixed minimum order quantity for stock surface treatment colors (white, silver, black) with standard diffusers. Small quantities are welcome for sampling and project evaluation. Custom surface treatment colors or non-standard configurations may be subject to minimum order quantities — please share your requirements for evaluation.
