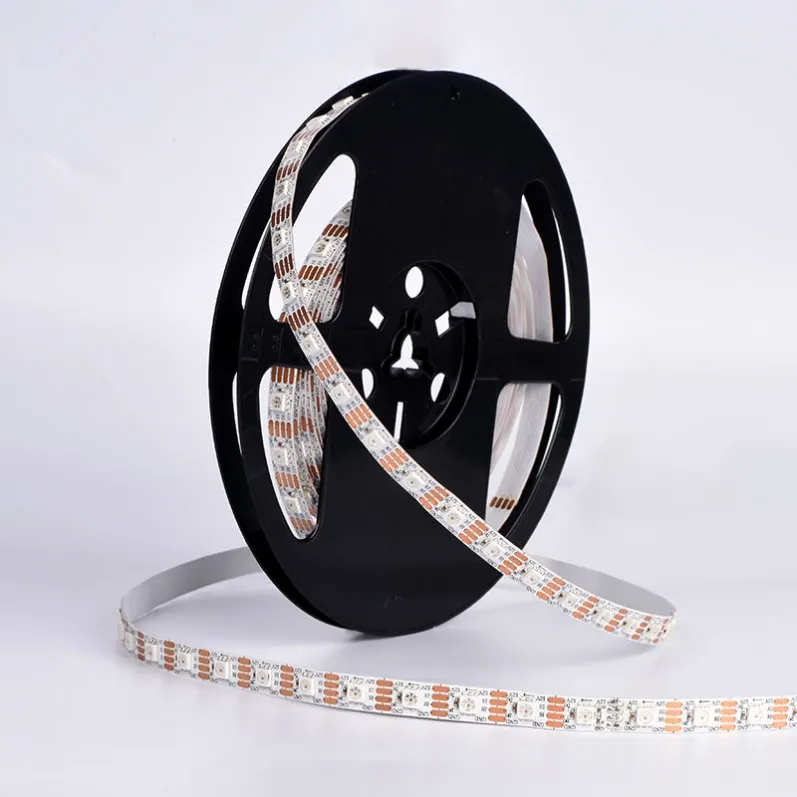

HST-SPI50RGB60 WS2812 Addressable RGB LED Strip
HST-SPI50RGB60 is a 10mm PCB SPI addressable RGB LED strip with 60 SMD5050 RGB LEDs/m and WS2812 IC. Each LED is individually addressable for chasing, running and color-changing effects. Available in 5V/12V with IP20/IP65/IP67/IP68; IP68 made to order 12-15 days, no MOQ. Ideal for architectural, entertainment, signage and retail lighting with OEM/ODM. Specify voltage, IP rating, length and quantity when requesting a quote.
Specifications
- Model
- HST-SPI50RGB60
- LED Type
- SPI SMD5050RGB
- LED Density
- 60 LEDs/m
- PCB Width
- 10 mm
- Voltage
- 5V
- Power
- 14.4 W/m
- Color
- RGB
- IC Type
- WS2812
- IP Rating
- IP20 / IP65 / IP67 / IP68
- Cutting Unit
- 16.66 mm (5V)
- Lifespan
- 50,000 hours
- Control Type
- SPI
- IC Type
- WS2812
- Pixel Density
- 60Pixels/m
- Signal Type
- Digital SPI
HST-SPI50RGB60 WS2812 Addressable RGB LED Strip
HST-SPI50RGB60 is a 10mm PCB SPI addressable RGB LED strip with 60 SMD5050 RGB LEDs per meter and an integrated WS2812 IC on each LED. Every LED is individually addressable, enabling programmable chasing, running, gradient and color-changing effects from a single data line. Available with 5V and 12V options and IP20, IP65, IP67 and IP68 configurations. IP20, IP65 and IP67 are standard configurations supplied without a minimum order quantity. IP68 is not kept in stock and is produced to order with a lead time of 12-15 days and no minimum order quantity. Please confirm voltage, required configuration, quantity and lead time according to the installation environment and project requirements.
Key Specifications
Parameter | Value |
|---|---|
Model | HST-SPI50RGB60 |
LED Type | SPI SMD5050 RGB |
LED Density | 60 LEDs/m |
PCB Width | 10 mm |
Voltage | 5V / 12V DC |
Power | 14.4 W/m |
Color | RGB (Full Color) |
IC Type | WS2812 |
IP Rating | IP20 / IP65 / IP67 / IP68 |
Cutting Unit | 16.66 mm (5V) |
Control Type | SPI (Digital) |
Pixel Density | 60 Pixels/m |
Availability & Lead Time
Configuration | Availability | MOQ | Lead Time |
|---|---|---|---|
IP20 | Standard | No minimum order quantity | / TBC — 沿用全线 5-7 日历日 |
IP65 | Standard | No minimum order quantity | / TBC — 沿用全线 10-12 日历日 |
IP67 | Standard | No minimum order quantity | / TBC — 沿用全线 10-12 日历日 |
IP68 | Made to order, not kept in stock | No minimum order quantity | 12-15 日历日 |
There is no minimum order quantity for any IP configuration of this product, so small quantities can be produced for testing, samples or project use. IP68 is produced after the order is confirmed because it is not kept in stock, so a lead time of 12-15 days applies. Please tell us the required quantity, target delivery date and installation conditions, and we will confirm the production schedule for your project.
Lead times above are in calendar days and do not include shipping time. Shipping time depends on the destination and selected shipping method.
Why Choose HST-SPI50RGB60 Addressable RGB LED Strip
- Individually addressable pixels — Each LED carries an integrated WS2812 IC, so every pixel can show a different color independently for dynamic lighting effects.
- Programmable effects — Single-line SPI control supports chasing, running, gradient, rainbow and custom patterns through a compatible controller.
- High-density RGB output — 60 SMD5050 RGB LEDs per meter deliver vivid, saturated full-color light for eye-catching installations.
- Flexible voltage options — Available in 5V and 12V to match different controller and power supply setups.
- Full waterproof range — IP20 to IP68 configurations cover indoor, damp and outdoor environments.

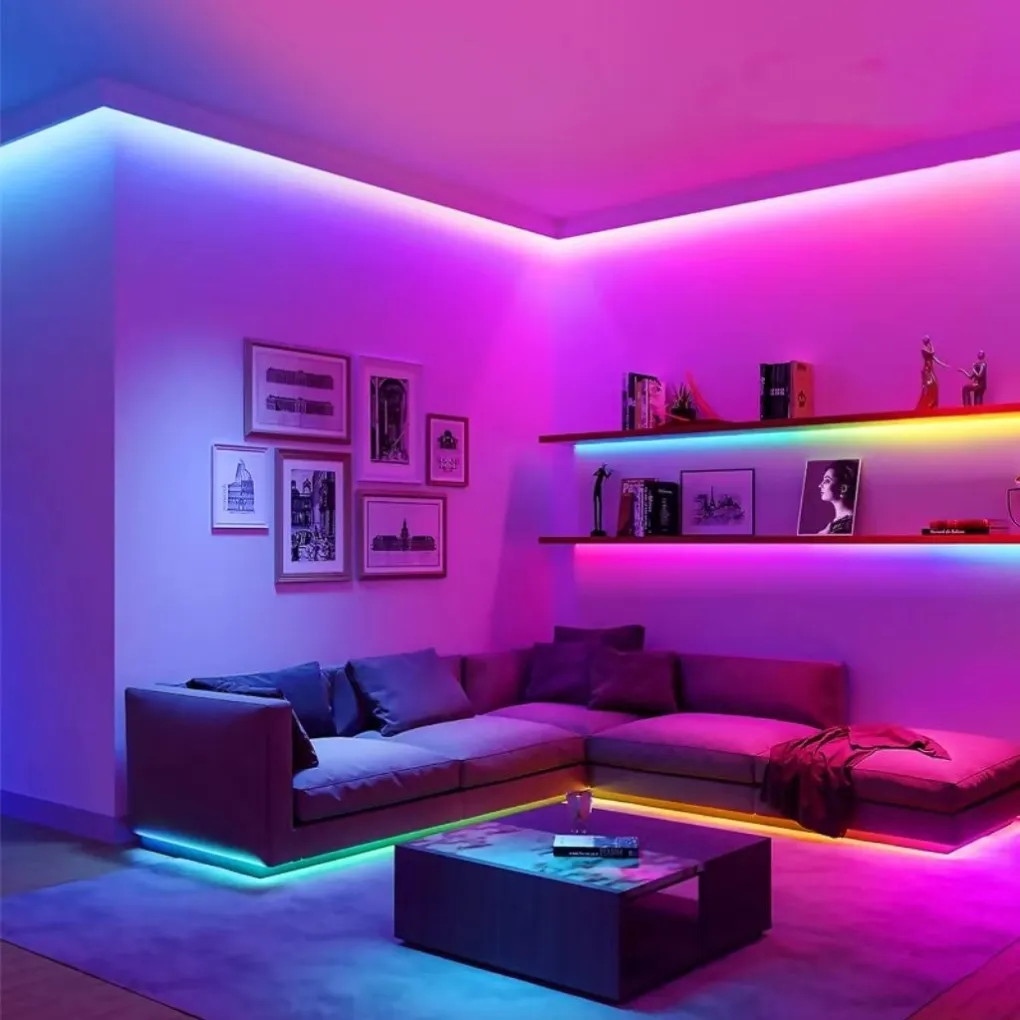

Typical Applications
HST-SPI50RGB60 is designed for projects where programmable, full-color dynamic lighting is essential:
- Architectural and facade lighting — Sync building outlines, walls and structures with music or time-based scenes.
- Entertainment and stage — Bars, clubs, concerts and event venues requiring animated color effects.
- Signage and logo lighting — Animated shop signs,字母灯 and brand displays.
- Retail and exhibition — Eye-catching window displays and booth lighting that draws attention.
- Smart home and DIY — Hobby projects, gaming setups and custom furniture lighting with controller integration.
For outdoor or wet-area applications, select the appropriate waterproof configuration and confirm sealing method, connectors, installation conditions, quantity and lead time before ordering. Note that IP68 is produced to order and is not kept in stock, so a lead time of 12-15 days should be allowed.
Controller & Wiring Note

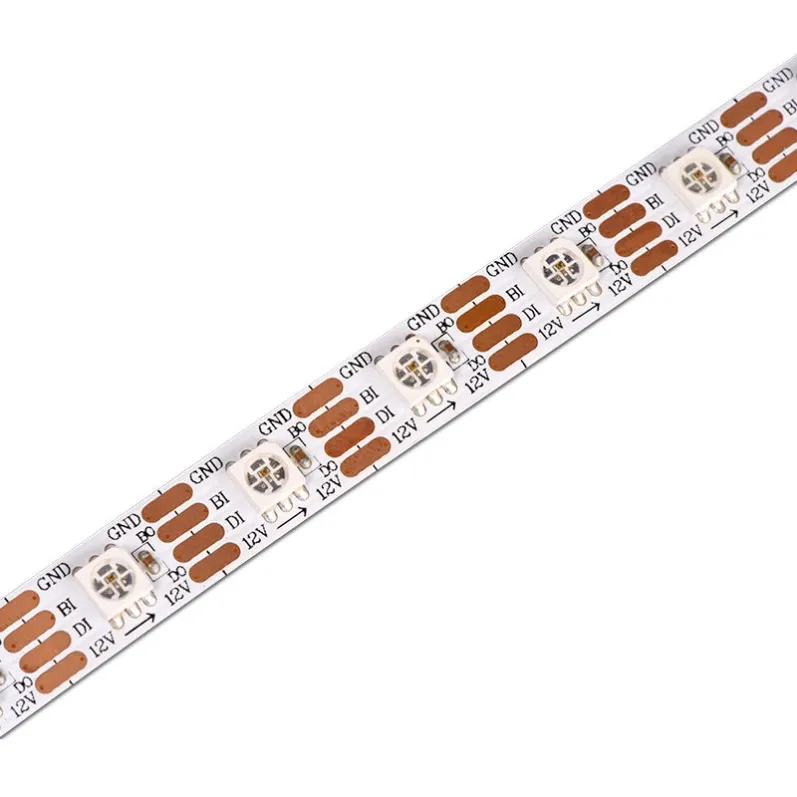

HST-SPI50RGB60 uses a single-data-line SPI protocol compatible with common WS2812-based controllers. A suitable 5V or 12V power supply and an SPI/addressable LED controller are required. Signal direction follows the arrow marked on the PCB; connect V+, GND and DATA only in the correct orientation. For long runs, consider power injection at intervals to maintain brightness and color consistency. Please share your controller model and planned length so we can advise on the power supply and wiring setup.
Quality & Documentation
- Each reel is tested before shipment to verify color consistency, addressable control and power consumption.
- Compliance documents can be provided for applicable product configurations upon request. Please tell us the target market and required product configuration so the relevant documents can be checked.
Selection Tip
For first-time users of addressable LED strips, we recommend requesting a sample reel of the IP20 configuration to evaluate the addressable control, color output and controller compatibility before committing to a larger order. This allows you to confirm that the WS2812 pixel control meets your project's visual and technical requirements.
Request a Quote or Sample
Looking for an addressable RGB LED strip for your lighting project?
Send us your required specifications: voltage, IP rating, approximate length and quantity. Our team will review your requirements and help you evaluate a suitable configuration for your project. There is no minimum order quantity. If your project requires the IP68 configuration, please allow a lead time of 12-15 days for production.
OEM / Customization
OEM/ODM options may include LED density, voltage, IP protection rating, cable type and length, connector type, packaging and private labeling, subject to technical feasibility and order quantity. Please share your project specifications and application details for evaluation.
FAQ
Q1: Is each LED individually addressable on HST-SPI50RGB60?
Yes. Every LED integrates a WS2812 IC, so each pixel can be controlled independently to display different colors and create chasing, running, gradient and custom effects from a single data line.
Q2: What controller do I need for this addressable strip?
HST-SPI50RGB60 uses a single-data-line SPI protocol compatible with common WS2812-based addressable LED controllers. You will also need a matching 5V or 12V power supply. Please share your controller model and planned length so we can advise on compatibility and wiring.
Q3: What voltage options are available, 5V or 12V?
HST-SPI50RGB60 is available with both 5V and 12V options. Choose 5V for standard WS2812 controller ecosystems and 12V where longer runs or different power setups are preferred. Please confirm your system voltage when requesting a quote.
Q4: What is the cutting unit of this strip?
The cutting unit is 16.66 mm at 5V, allowing precise segmentation at each addressable pixel. For 12V versions, confirm the cutting unit with us as it may differ. Always cut only at the marked cutting points to avoid damaging the circuit.
Q5: What is the maximum running length?
The maximum running length depends on the power supply capacity, voltage and wire gauge. At 14.4 W/m, please tell us your planned installation length and voltage so that we can advise on power supply requirements and whether multiple power injection points are needed.
Q6: What applications are suitable for HST-SPI50RGB60?
This product is designed for projects requiring programmable full-color dynamic lighting: architectural and facade lighting, entertainment and stage venues, signage and logo lighting, retail displays and smart-home or DIY projects. The individually addressable pixels make it ideal for animated and music-synced effects.
Q7: Can I request samples before bulk production?
Yes. Samples are available for evaluation. We recommend ordering a sample reel of the IP20 configuration to test the addressable control, color consistency and controller compatibility before placing a larger order. Please tell us the target specifications and application so the correct configuration can be prepared.
Q8: Is there a minimum order quantity, and how long does production take?
There is no minimum order quantity for this product. Small quantities can be ordered for testing, samples or project use in any IP configuration. IP20, IP65 and IP67 are standard configurations with lead times of 5-7 days and 10-12 days respectively. IP68 is not kept in stock and is produced to order, with a lead time of 12-15 days. Please tell us the required quantity and your target delivery date so the production schedule can be confirmed.
Q9: Is the IP68 version in stock, or does it have to be produced?
IP68 is not kept in stock and is produced to order. There is no minimum order quantity for IP68, so small quantities can be produced for evaluation. Production takes 12-15 days after order confirmation. If you need the fastest possible delivery for an initial test, we recommend ordering the IP20, IP65 or IP67 configuration first to evaluate light performance and color consistency.
