Top Benting Neon Strips
1616 Top Neon Flex
The Top / vertical bending LED neon flex features dot-free lighting, longer lifespan and High efficacy, high CRI, it is designed to provide consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants, shops, offices and homes.
Specifications
- Model No.
- HST-NF1616W160-24-10
- Power
- 15W/m
- Lumen output
- 1200LM/M
- LEDs/m
- 160LEDs
- Cut Length
- 50mm
- CRI
- CRI 80+~98+
- Voltage
- 24VDC
High lighting transmission rate, up to 90%,The high lumen output solution is suitable for decorative and illumination lighting purpose.
The silicone thermal conductivity is 0.27W/MK, which is much higher than PVC 0.14W/MK, it helps better thermal management on LED strip.
The IP67 and IP68 is coming true by adopting the superior design and manufacturing craft on the cable and cap.
Storage temp. : -50~150°C
Ambient temp. : -25 ~ 45°C
Specification:

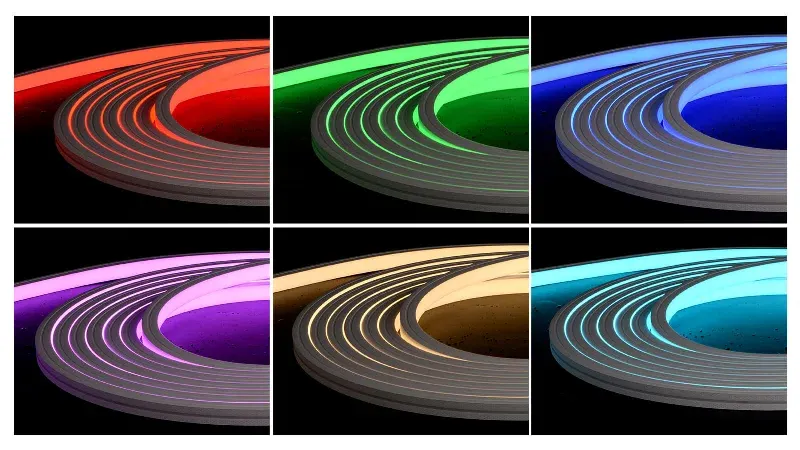

CCT/Color | 2200K-6000K |
Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |
IP Rating | IP67 |
Ambient temp. | -35°C~55°C |
Beam Angle | 360° |
Length/reel | 5m ~ 50m |
Lifespan | 30,000Hrs |
Cut points:

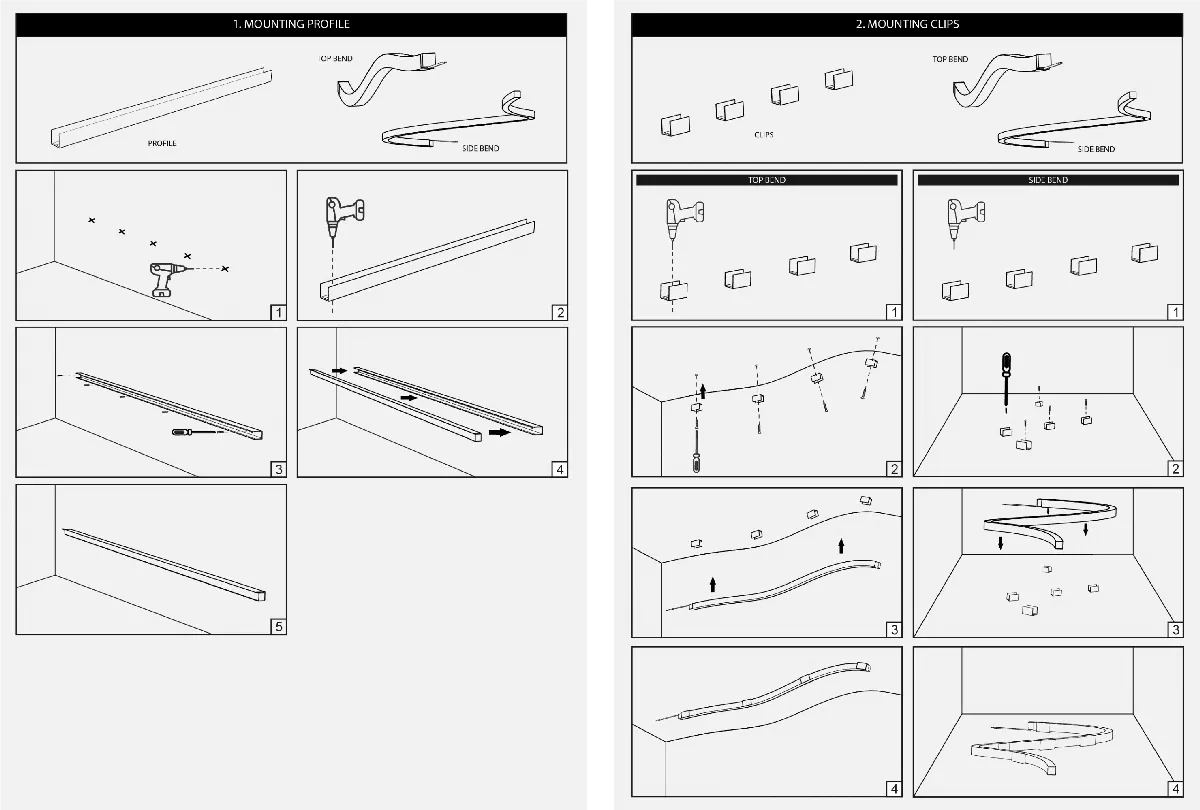

Installation:
