24V Addressable RGB SMD5050 LED Strip

Name: 24V Addressable RGB SMD5050 LED Strip
Brand: HST Light
SKU: HST-SMD5050-60-10-DC24V-12.8W

24V DC · 10 mm PCB · 12.8 W/m · 100 mm Cut

Model: Model

HST Light’s 24V Addressable RGB LED Strip is based on the confirmed HST-SMD5050-60-10-DC24V-12.8W platform for professional B2B lighting projects.

24V addressable RGB SMD5050 LED strip for dynamic pixel-style effects, chasing patterns and programmable color-lighting projects.

Request a Quote Request a Sample

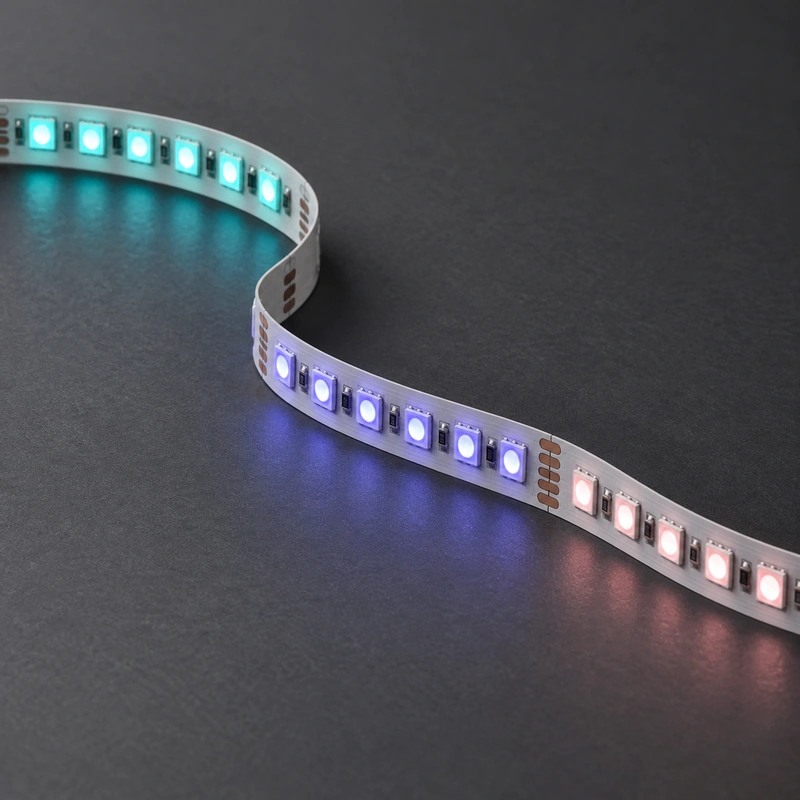

24V Addressable RGB SMD5050 LED Strip - main product image

Key Specifications

Model	HST-SMD5050-60-10-DC24V-12.8W
LED Type	SMD5050
LED Density	60 LEDs/m
Input Voltage	24V DC
Power	12.8 W/m
PCB Width	10 mm
Color	Addressable RGB
Cutting Length	100 mm
Max Run Length	5 m
Copper Thickness	25/25
Control	SPI / Addressable RGB

Product Features

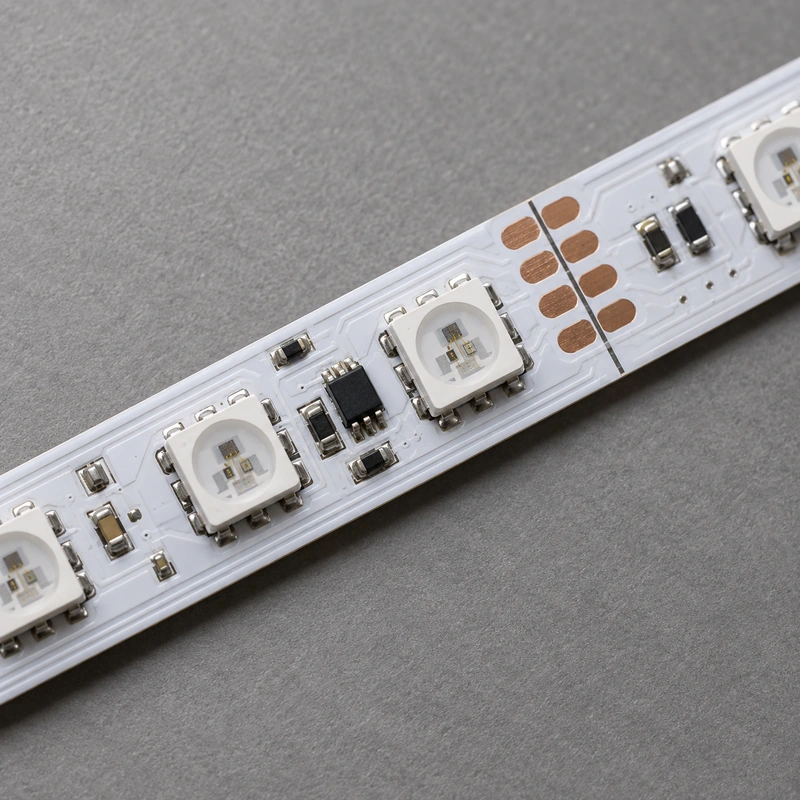

SPI Addressable Control

The addressable platform supports dynamic programmed effects that are not possible with conventional constant-voltage RGB strips.

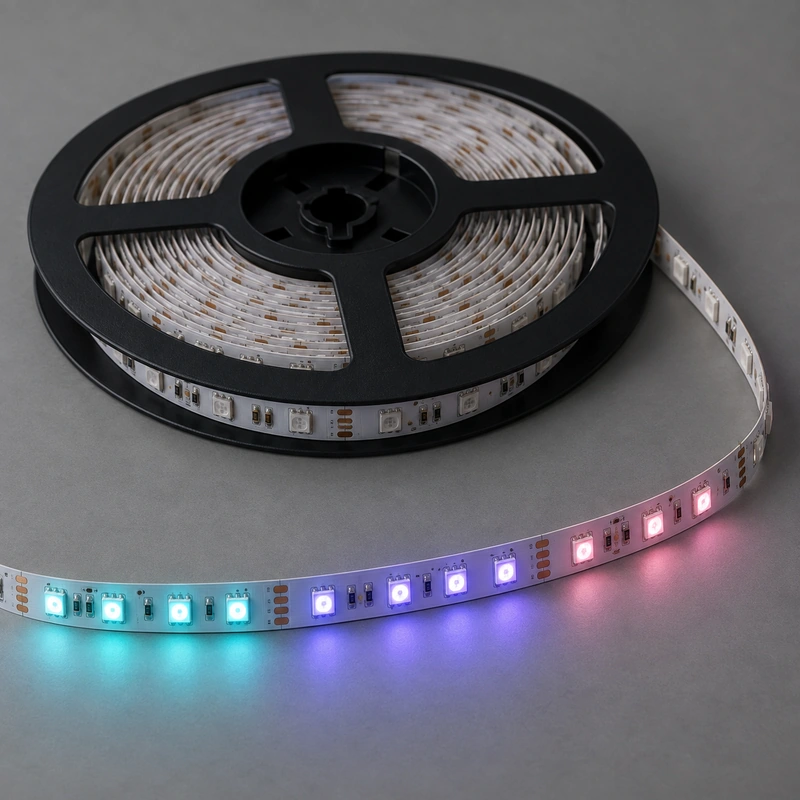

24V Professional Format

The 10mm PCB and 24V supply system are suitable for commercial installations where a higher-voltage addressable platform is preferred.

Why Choose a 24V Addressable RGB LED Strip?

The 24V Addressable RGB LED Strip combines the confirmed specifications of model HST-SMD5050-60-10-DC24V-12.8W with a product format designed for the applications shown on this page, including entertainment lighting and retail displays. Its main strengths include Addressable RGB, SPI Control and 60 LEDs/m. Additional project-relevant features include DC24V, 100mm Cut, 5m Run. For project-specific orders, HST Light can review electrical configuration, cable routing, mounting details, operating environment and quantity before mass production.

Addressable RGB

Programmable color effects.

SPI Control

Digital dynamic control.

60 LEDs/m

SMD5050 platform.

DC24V

Professional voltage.

100mm Cut

Segmented installation.

5m Run

Confirmed maximum run length.

RGB / RGBW / Addressable LED Strip Options

Product	Light Source	Color System	Control Type	Main Focus
24V RGB LED Strip	SMD5050	RGB	Constant Voltage RGB	Standard color-changing projects
24V RGBW LED Strip	SMD5050	RGBW	Constant Voltage RGBW	RGB effects plus dedicated white
24V Addressable RGB LED Strip	SMD5050	Addressable RGB	SPI	Dynamic chasing / programmable effects
Addressable RGB COB LED Strip	COB	Addressable RGB	SPI	Smooth dot-free dynamic color
Addressable RGBW COB LED Strip	COB	Addressable RGBW	SPI	Dot-free dynamic color plus white channel

Control & Installation Notes

Addressable lighting projects should confirm the controller, data protocol, grouping or pixel configuration, supply voltage and power-distribution layout before mass production.

Do not assume an IC model, pixel count or control protocol beyond the specifications confirmed on this page. Cable length, data stability and power injection should be evaluated using the actual project layout.

Pre-production testing with the intended controller and installation length is recommended before finalizing the project system.

Applications

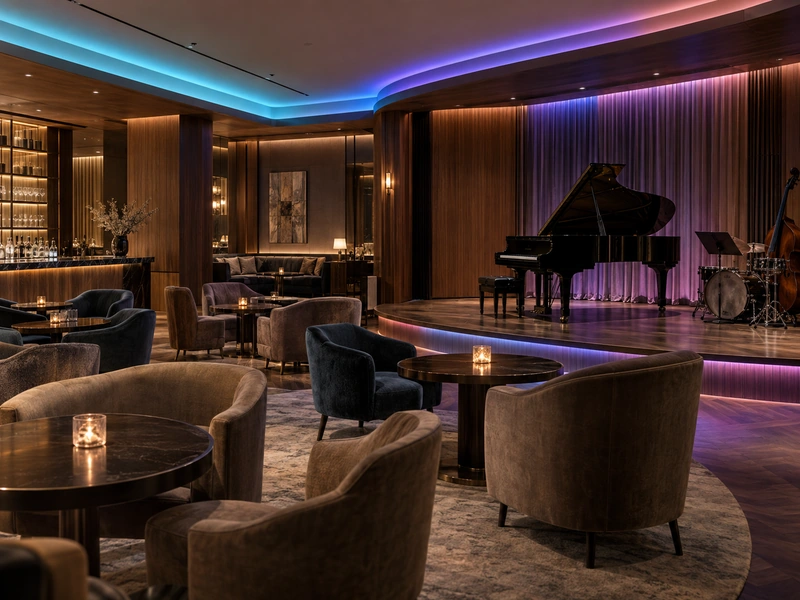

Entertainment Lighting

For dynamic effects.

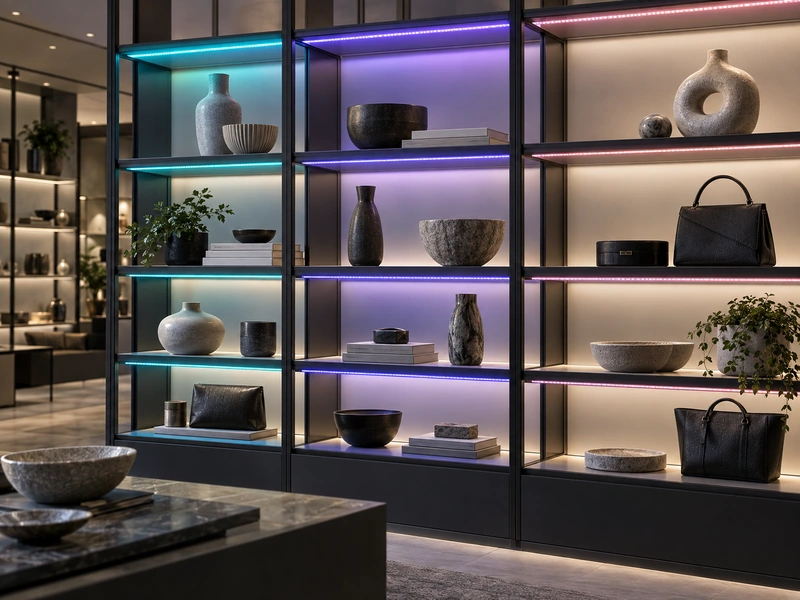

Retail Displays

For moving color scenes.

Dynamic Signage

For programmable accents.

Interactive Installations

For controlled visual effects.

Customization Options

HST Light can support project-specific voltage, color/control configuration, cable length, connector configuration, mounting accessories, packaging and other OEM requirements based on the confirmed product platform.

For control-related projects, please provide the required effect, controller type, installation length, operating environment, cable direction and project quantity so our team can evaluate the suitable configuration.

Need a customized version?

Discuss Your Project →

Technical & OEM Support

24V Addressable RGB LED Strip projects should be evaluated using the actual production configuration, installation environment, cable routing, mounting structure and project requirements before mass production.

HST Light can support pre-production sample verification of the confirmed key specifications, luminous appearance, electrical performance and installation compatibility.

For precision or high-volume projects, the actual production sample should be confirmed before finalizing concealed structures, grooves, mounting components, control systems or power-feed layouts.

How We Validate Custom LED Strips Before Mass Production →

Need a 24V Addressable RGB LED Strip?

Send us your required voltage, CCT or color, installation length, operating environment, cable direction and quantity. Our team will help evaluate the suitable HST-SMD5050-60-10-DC24V-12.8W configuration for your project.

Request a Quote Request a Sample

Frequently Asked Questions

What is the 24V Addressable RGB SMD5050 LED Strip used for?

The 24V Addressable RGB SMD5050 LED Strip is designed for architectural, commercial, furniture and linear lighting applications that require a smooth, consistent light output.

What options can be configured?

Voltage, CCT or color, cable length, connector and packaging can be configured. Refer to the Key Specifications table and contact our team with your project requirements.

Can HST Light customize the 24V Addressable RGB SMD5050 LED Strip?

Yes. HST Light supports project-specific voltage, CCT or color, cable length, cable exit direction, connector and OEM requirements.

Can I order samples before mass production?

Yes. HST Light supports pre-production sample verification of key specifications and appearance before volume orders.
