2.7mm 5V Ultra-Slim COB LED Strip

Name: 2.7mm 5V Ultra-Slim COB LED Strip
Brand: HST Light
SKU: HST-FCOB480-2.7-DC5V

5V DC · 2.7 mm PCB · 5 W/m · ≈450 lm/m · 12.5 mm Cut

Model: Model

HST Light’s 2.7mm COB LED Strip is based on the confirmed HST-FCOB480-2.7-DC5V platform for professional B2B lighting projects.

Ultra-slim 2.7mm COB LED strip designed for miniature channels, compact products and precision lighting applications.

Request a Quote Request a Sample

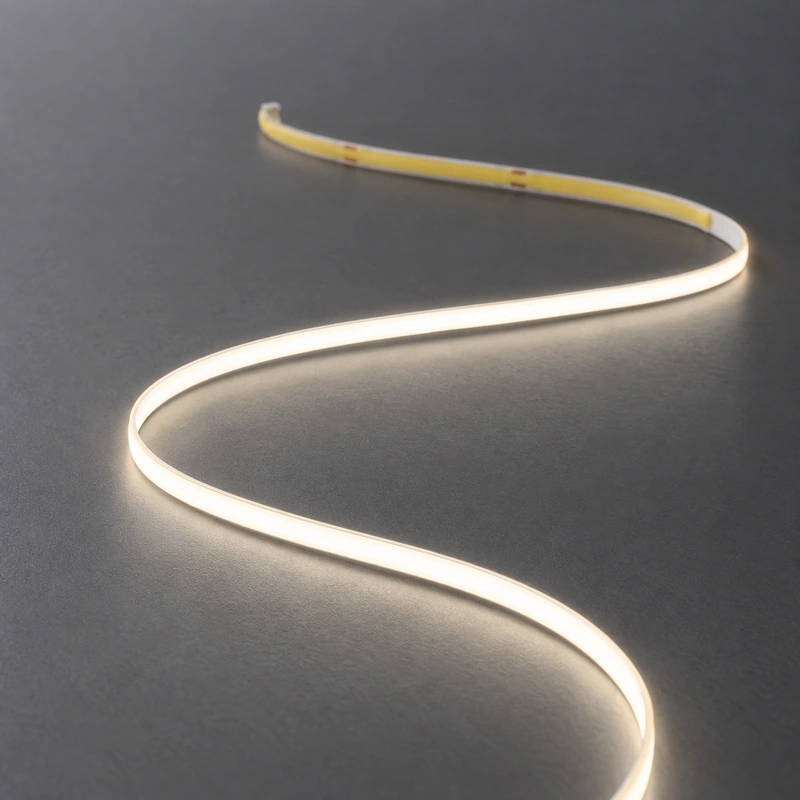

2.7mm 5V Ultra-Slim COB LED Strip - main product image

Key Specifications

Model	HST-FCOB480-2.7-DC5V
LED Technology	COB
LED Density	480 LEDs/m
Input Voltage	5V DC
Power	5 W/m
PCB Width	2.7 mm
CCT	3000K / 4000K / 6500K
CRI	Ra 90
Luminous Flux	Approx. 450 lm/m
Efficiency	Approx. 70–90 lm/W
Cutting Length	12.5 mm

Product Features

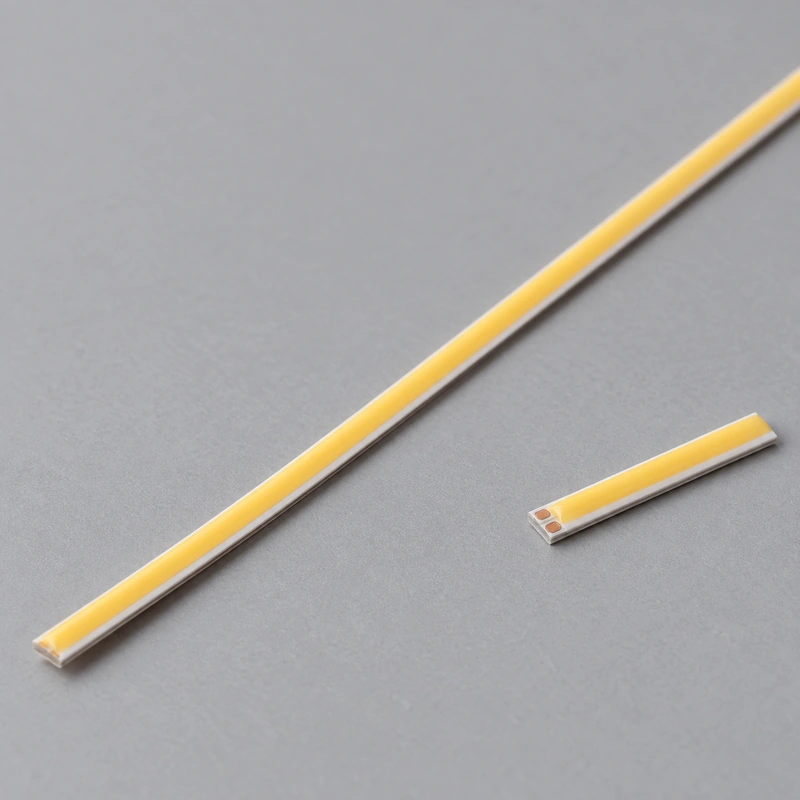

2.7mm Ultra-Slim PCB

The narrow PCB supports integration into miniature channels, custom housings and highly space-constrained lighting products.

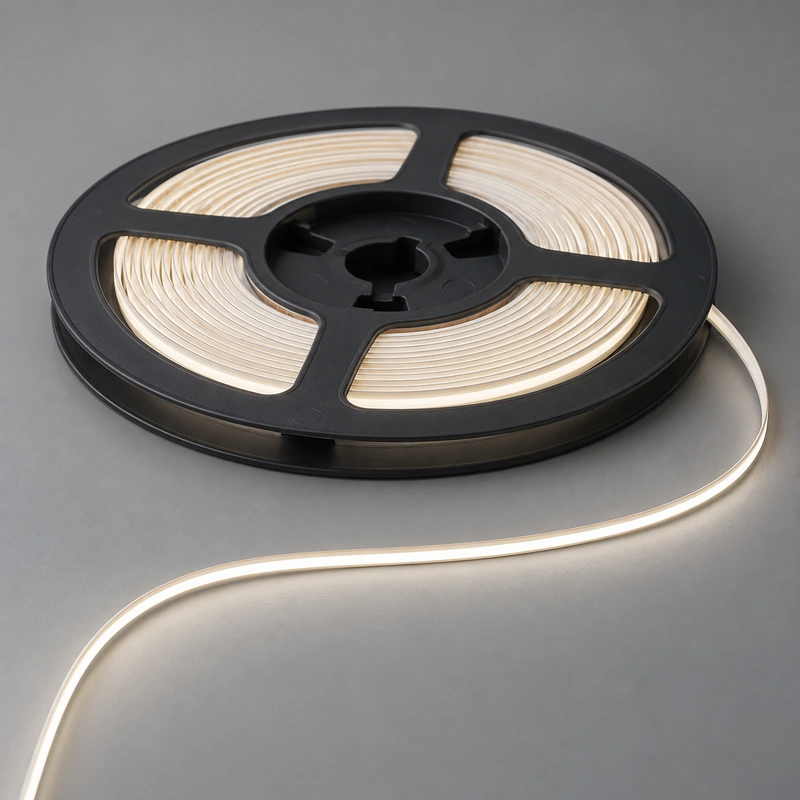

5V High-Density COB

The 480 LEDs/m COB construction provides continuous white illumination with reduced visible LED points.

Why Choose a 2.7mm COB LED Strip?

The 2.7mm COB LED Strip combines the confirmed specifications of model HST-FCOB480-2.7-DC5V with a product format designed for the applications shown on this page, including miniature fixtures and furniture details. Its main strengths include 2.7mm PCB, DC5V and 480 LEDs/m. Additional project-relevant features include Ra90, 12.5mm Cut, Dot-Free. For project-specific orders, HST Light can review electrical configuration, cable routing, mounting details, operating environment and quantity before mass production.

2.7mm PCB

Extremely narrow format.

DC5V

Low-voltage operation.

480 LEDs/m

Dense COB light source.

Ra90

Good color rendering.

12.5mm Cut

Fine project adjustment.

Dot-Free

Smooth visible light line.

Available Color Temperatures

3000K

Warm white for cabinetry, retail displays, hospitality and architectural details.

4000K

Neutral white for showcases, commercial fixtures and modern interiors.

6500K

Cool daylight white for technical displays and contemporary commercial environments.

Applications

Miniature Fixtures

For compact products.

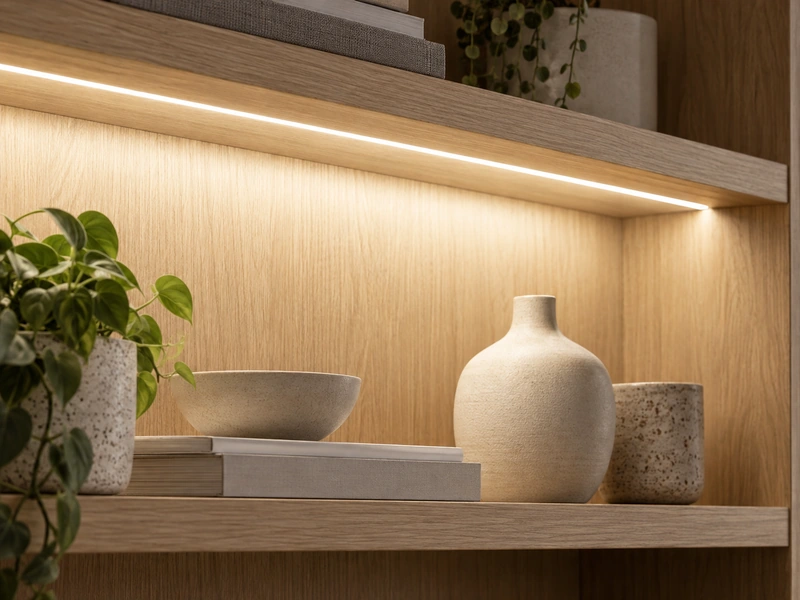

Furniture Details

For narrow grooves.

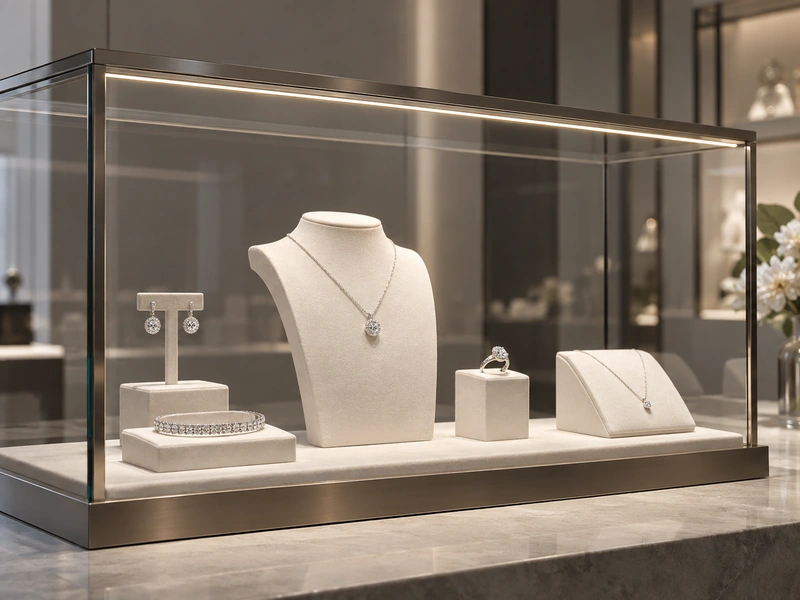

Display Products

For close-view lighting.

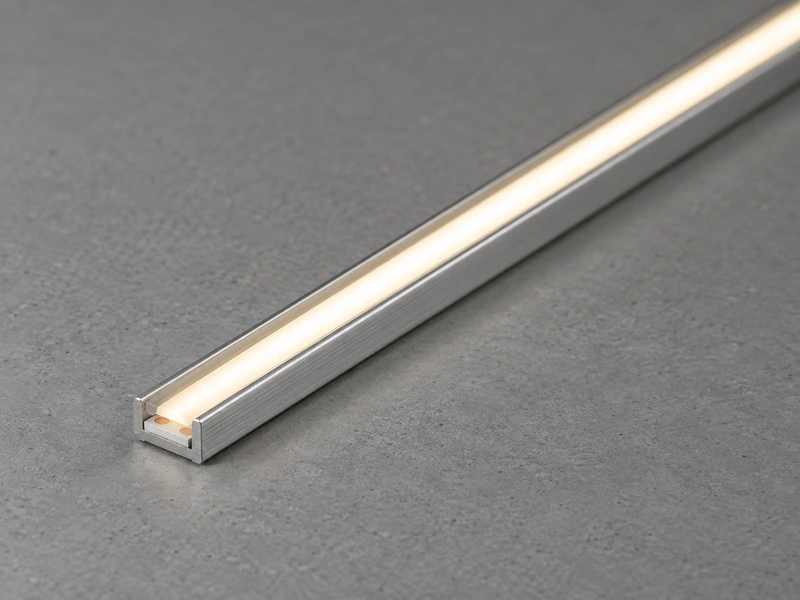

Slim Profiles

For very small channels.

Customization Options

HST Light can support project-specific voltage, CCT or color configuration, cable length, cable exit direction, connector configuration, waterproof version where applicable, packaging and other OEM requirements based on the confirmed LED strip platform.

For project evaluation, please provide the required voltage, CCT or color, installation length, operating environment, cable direction and project quantity.

Need a customized version?

Discuss Your Project →

Technical & OEM Support

2.7mm COB LED Strip projects should be evaluated using the actual production configuration, installation environment, cable routing, mounting structure and project requirements before mass production.

HST Light can support pre-production sample verification of the confirmed key specifications, luminous appearance, electrical performance and installation compatibility.

For precision or high-volume projects, the actual production sample should be confirmed before finalizing concealed structures, grooves, mounting components, control systems or power-feed layouts.

Confirm the final power supply, installation length, cable size, connection method and mounting environment before installation.

For longer low-voltage runs, voltage drop and thermal conditions should be evaluated using the actual project configuration rather than relying only on nominal strip specifications.

Where aluminum profiles or enclosed mounting structures are used, verify fit, heat dissipation and cable routing with the production sample before volume installation.

How We Validate Custom LED Strips Before Mass Production →

Need a 2.7mm COB LED Strip?

Send us your required voltage, CCT or color, installation length, operating environment, cable direction and quantity. Our team will help evaluate the suitable HST-FCOB480-2.7-DC5V configuration for your project.

Request a Quote Request a Sample

Frequently Asked Questions

What is the 2.7mm 5V Ultra-Slim COB LED Strip used for?

The 2.7mm 5V Ultra-Slim COB LED Strip is designed for architectural, commercial, furniture and linear lighting applications that require a smooth, consistent light output.

What options can be configured?

Voltage, CCT or color, cable length, connector and packaging can be configured. Refer to the Key Specifications table and contact our team with your project requirements.

Can HST Light customize the 2.7mm 5V Ultra-Slim COB LED Strip?

Yes. HST Light supports project-specific voltage, CCT or color, cable length, cable exit direction, connector and OEM requirements.

Can I order samples before mass production?

Yes. HST Light supports pre-production sample verification of key specifications and appearance before volume orders.
