AC110/220V High-Voltage COB LED Strip

Name: AC110/220V High-Voltage COB LED Strip
Brand: HST Light
SKU: HST-FCOB360-10-AC110/220V

110/220V AC · 10 mm PCB · 10 W/m · ≈1000 lm/m · 125 mm Cut

Model: Model

HST Light’s High Voltage COB LED Strip is based on the confirmed HST-FCOB360-10-AC110/220V platform for professional B2B lighting projects.

High-voltage AC COB LED strip designed for professional linear lighting projects that require high-voltage system architecture and smooth dot-free illumination.

Request a Quote Request a Sample

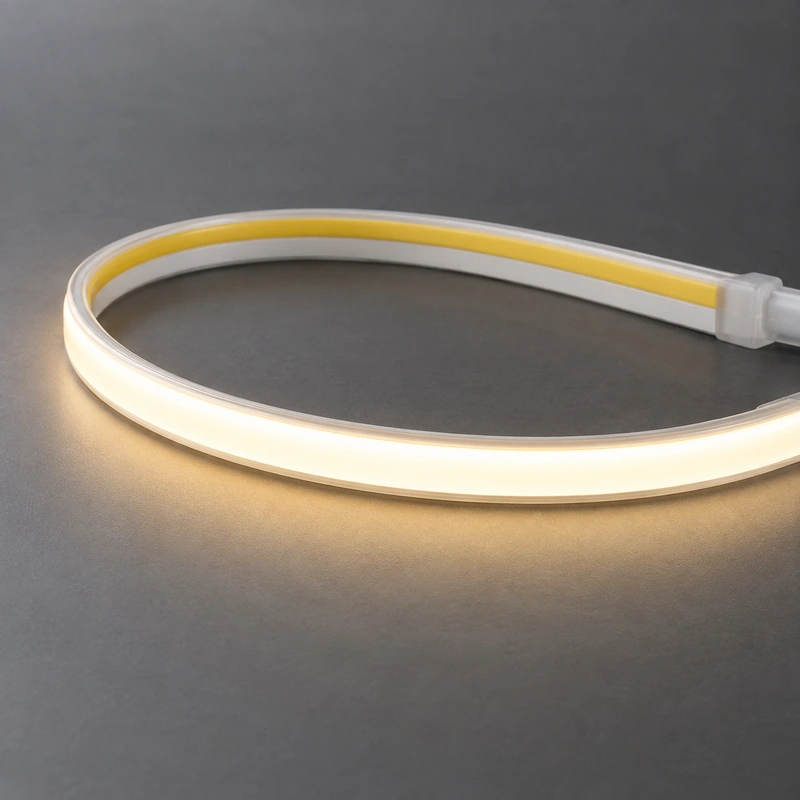

AC110/220V High-Voltage COB LED Strip - main product image

Key Specifications

Model	HST-FCOB360-10-AC110/220V
LED Technology	COB
LED Density	360 LEDs/m
Input Voltage	110/220V AC
Power	10 W/m
PCB Width	10 mm
CCT	3000K / 4000K / 6500K
CRI	Ra 80
Luminous Flux	Approx. 1000 lm/m
Efficiency	Approx. 90–100 lm/W
Cutting Length	125 mm

Product Features

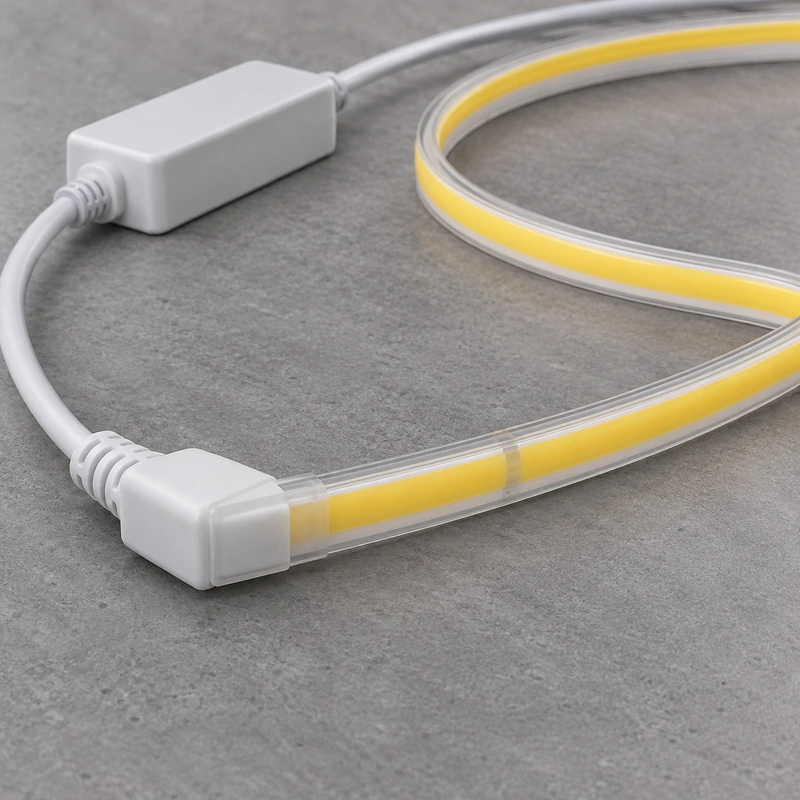

High-Voltage AC Platform

The AC system is intended for project installations where low-voltage power distribution may be impractical over extended distances.

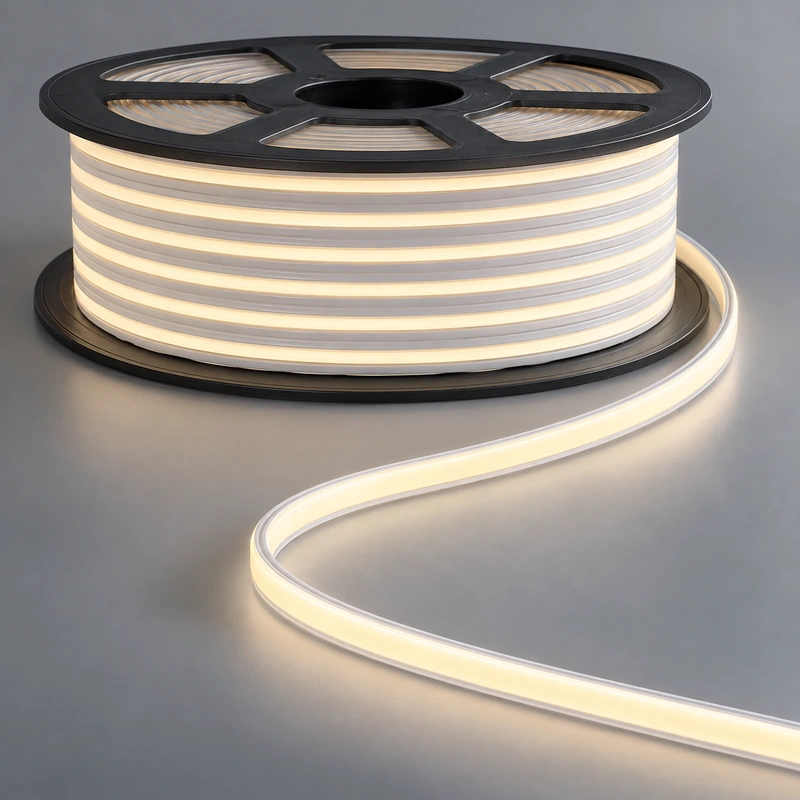

Smooth COB Illumination

The continuous COB light-emitting surface provides a cleaner visual line than conventional discrete high-voltage SMD strips.

Why Choose a High Voltage COB LED Strip?

The High Voltage COB LED Strip combines the confirmed specifications of model HST-FCOB360-10-AC110/220V with a product format designed for the applications shown on this page, including commercial linear lighting and architectural coves. Its main strengths include AC110/220V, 360 LEDs/m and 10W/m. Additional project-relevant features include 1000 lm/m, 125mm Cut, Dot-Free. For project-specific orders, HST Light can review electrical configuration, cable routing, mounting details, operating environment and quantity before mass production.

AC110/220V

High-voltage system.

360 LEDs/m

Dense COB source.

10W/m

Project-oriented power level.

1000 lm/m

Useful linear output.

125mm Cut

High-voltage cutting interval.

Dot-Free

Smooth COB appearance.

Available Color Temperatures

3000K

Warm white for cabinetry, retail displays, hospitality and architectural details.

4000K

Neutral white for showcases, commercial fixtures and modern interiors.

6500K

Cool daylight white for technical displays and contemporary commercial environments.

Applications

Commercial Linear Lighting

For large projects.

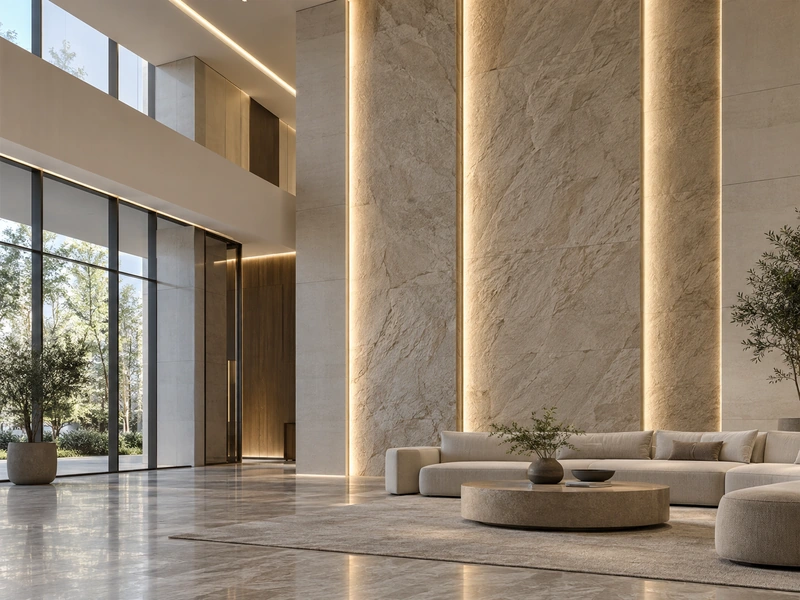

Architectural Coves

For extended runs.

Decorative Lines

For smooth high-voltage lighting.

Project Installations

For professional AC systems.

Customization Options

HST Light can support project-specific voltage, CCT or color configuration, cable length, cable exit direction, connector configuration, waterproof version where applicable, packaging and other OEM requirements based on the confirmed LED strip platform.

For project evaluation, please provide the required voltage, CCT or color, installation length, operating environment, cable direction and project quantity.

Need a customized version?

Discuss Your Project →

Technical & OEM Support

High Voltage COB LED Strip projects should be evaluated using the actual production configuration, installation environment, cable routing, mounting structure and project requirements before mass production.

HST Light can support pre-production sample verification of the confirmed key specifications, luminous appearance, electrical performance and installation compatibility.

For precision or high-volume projects, the actual production sample should be confirmed before finalizing concealed structures, grooves, mounting components, control systems or power-feed layouts.

This is a high-voltage product platform. Final installation, connections, protection devices and cable routing must follow local electrical requirements and should be completed by qualified personnel.

Maximum run length should be confirmed for the final production configuration. Do not assume that every project can use the maximum run without reviewing load, supply method and environmental conditions.

Before volume installation, confirm the exact product configuration, connector system, protection method and installation environment. This page intentionally does not provide DIY mains-wiring instructions.

How We Validate Custom LED Strips Before Mass Production →

Need a High Voltage COB LED Strip?

Send us your required voltage, CCT or color, installation length, operating environment, cable direction and quantity. Our team will help evaluate the suitable HST-FCOB360-10-AC110/220V configuration for your project.

Request a Quote Request a Sample

Frequently Asked Questions

What is the AC110/220V High-Voltage COB LED Strip used for?

The AC110/220V High-Voltage COB LED Strip is designed for architectural, commercial, furniture and linear lighting applications that require a smooth, consistent light output.

What options can be configured?

Voltage, CCT or color, cable length, connector and packaging can be configured. Refer to the Key Specifications table and contact our team with your project requirements.

Can HST Light customize the AC110/220V High-Voltage COB LED Strip?

Yes. HST Light supports project-specific voltage, CCT or color, cable length, cable exit direction, connector and OEM requirements.

Can I order samples before mass production?

Yes. HST Light supports pre-production sample verification of key specifications and appearance before volume orders.
