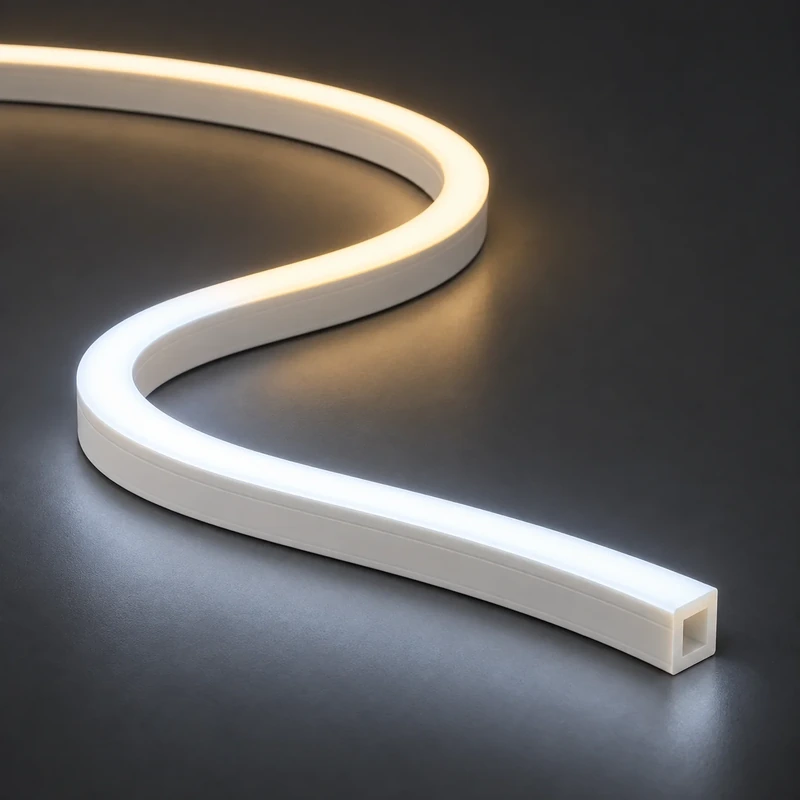

10mm Dual-Color COB LED Neon Flex 608 LEDs/m
12V DC / 24V DC · 10 mm · 22 W/m · ≈1760 lm/m · 13.15 / 26.31 mm Cut
Model: Model
HST Light’s 10mm Dual-Color LED Neon Flex is based on the confirmed HST-NF10-22W-Ra90 platform for professional B2B lighting projects.
High-output dual-color COB LED Neon Flex with 608 LEDs/m, 3000K and 6000K white-light options, Ra90 color rendering and smooth dot-free illumination.
Key Specifications
| Model | HST-NF10-22W-Ra90 |
| LED Technology | COB |
| LED Density | 608 LEDs/m |
| Input Voltage | 12V DC / 24V DC |
| Power | 22 W/m |
| Profile Reference | 10 mm |
| CCT | 3000K / 6000K |
| CRI | Ra 90 |
| Luminous Flux | Approx. 1760 lm/m |
| Efficiency | Approx. 70–90 lm/W |
| Cutting Length | 13.15 / 26.31 mm |
| IP Rating | IP67 |
| Special Feature | Dual Color / Square / Ultra-Slim / Hollow / Dot-Free |
Product Features

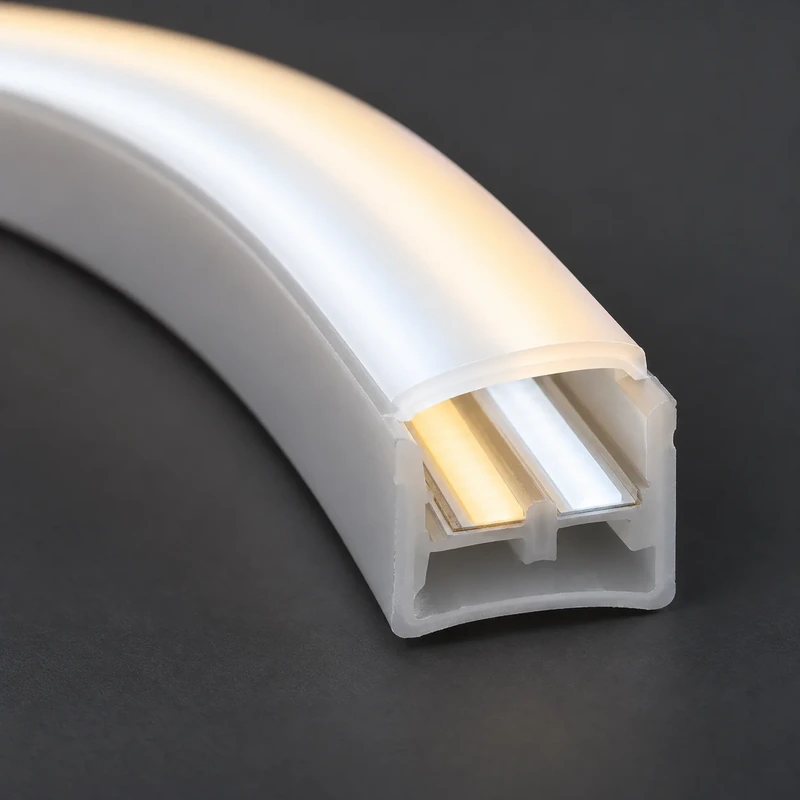

3000K + 6000K Dual-Color Platform
The dual-color design provides two white-light choices within one neon platform for projects requiring warm and cool white flexibility.

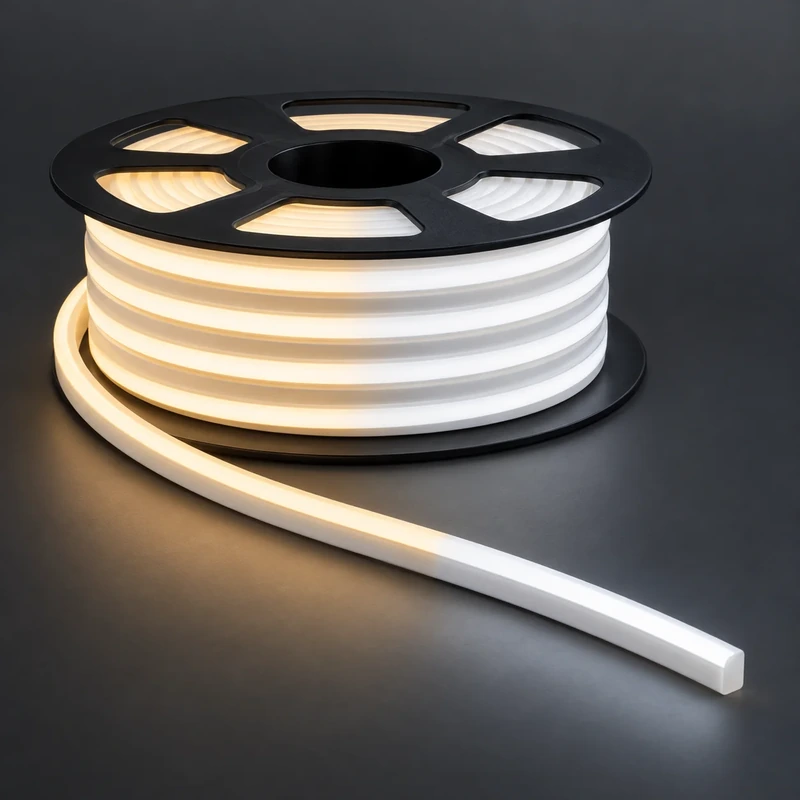

High-Output COB Neon
Approximately 1760 lm/m output supports more demanding architectural and commercial applications.
Why Choose a 10mm Dual-Color LED Neon Flex?
The 10mm Dual-Color LED Neon Flex combines the confirmed specifications of model HST-NF10-22W-Ra90 with a product format designed for the applications shown on this page, including hospitality lighting and architectural details. Its main strengths include Dual Color, 608 LEDs/m and 1760 lm/m. Additional project-relevant features include Ra90, 10mm Profile, IP67. For project-specific orders, HST Light can review electrical configuration, cable routing, mounting details, operating environment and quantity before mass production.
Dual Color
3000K + 6000K.
608 LEDs/m
Dense COB platform.
1760 lm/m
High luminous output.
Ra90
Good color rendering.
10mm Profile
Compact square format.
IP67
Protected construction.
10mm LED Neon Flex Options
| Product | Light / Color | Structure | IP Rating | Main Focus |
|---|---|---|---|---|
| 10mm RGB LED Neon Flex | RGB | Square / Ultra-Slim / Hollow | IP67 | Smooth color-changing light |
| 10mm Dual-Color LED Neon Flex | 3000K / 6000K | Square / Ultra-Slim / Hollow | IP67 | Two white-light options |
| 10mm Square LED Neon Flex | Single Color | Square / Ultra-Slim / Hollow | IP67 | Standard square white-light platform |
| 10mm IP68 LED Neon Flex | Single Color | Square / Clear / Solid | IP68 | Clear solid high-protection profile |
| 10mm Semi-Round LED Neon Flex | Single Color | Semi-Round / Clear / Hollow | IP67 | Curved visible light-emitting surface |
Available Color Temperatures
3000K
Warm white for cabinetry, retail displays, hospitality and architectural details.
6000K
Cool white for technical displays and contemporary commercial environments.
Applications

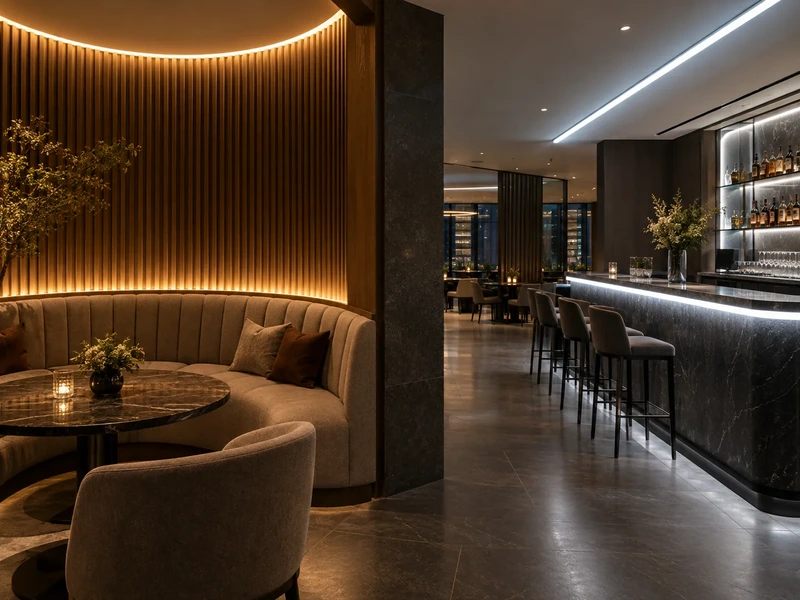

Hospitality Lighting
For selectable white scenes.

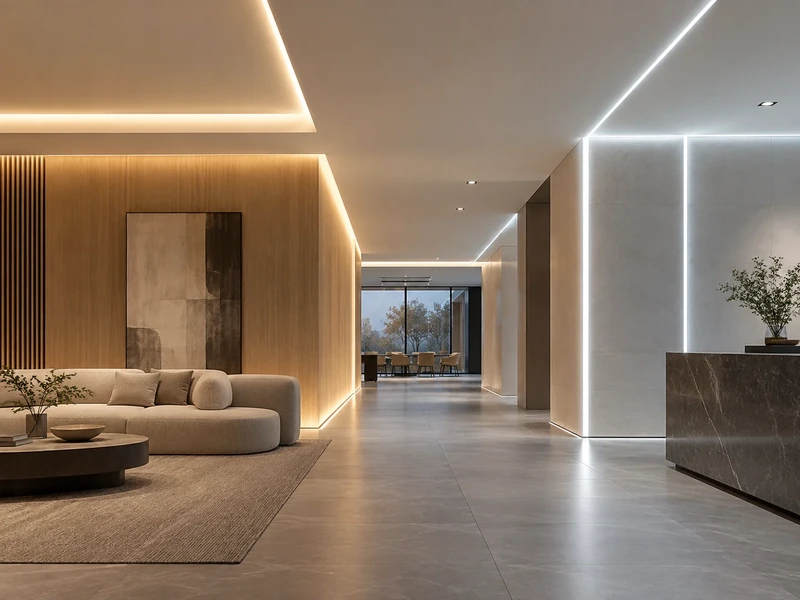

Architectural Details
For premium linear light.

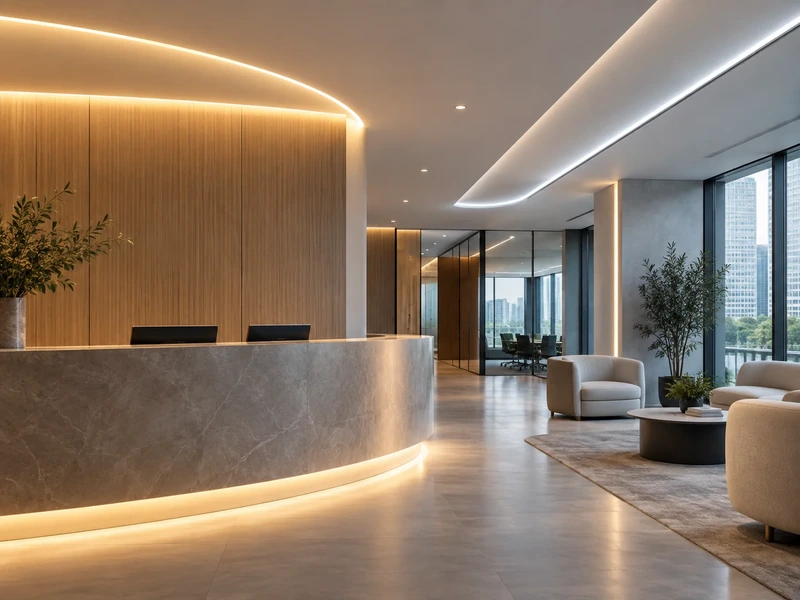

Retail Lighting
For warm/cool flexibility.
Commercial Interiors
For higher-output neon.
Customization Options
HST Light can support project-specific voltage, CCT or color configuration, cable length, cable exit direction, connector configuration, mounting accessories, packaging and other OEM requirements based on this Neon Flex platform.
For precision projects, please provide the available installation space, required voltage, CCT or color, product length, cable direction, operating environment and project quantity so our team can evaluate the suitable configuration.
Need a customized version?
Technical & OEM Support
10mm Dual-Color LED Neon Flex projects should be evaluated using the actual production configuration, installation environment, cable routing, mounting structure and project requirements before mass production.
HST Light can support pre-production sample verification of the confirmed key specifications, luminous appearance, electrical performance and installation compatibility.
For precision or high-volume projects, the actual production sample should be confirmed before finalizing concealed structures, grooves, mounting components, control systems or power-feed layouts.
The Neon Flex itself is specified as IP67, but the protection level of the complete installation also depends on cable entries, connectors, cut ends and sealing workmanship.
For moisture-prone installations, all connection areas should be properly sealed according to the actual project environment.
Avoid excessive pulling, twisting, sharp folding or bending beyond the permitted direction and radius of the final production configuration.
For precision furniture, showcase, recessed or fixture projects, sample fitting is recommended before producing large quantities of grooves or mounting components.
Need a 10mm Dual-Color LED Neon Flex?
Send us your required voltage, CCT or color, installation length, operating environment, cable direction and quantity. Our team will help evaluate the suitable HST-NF10-22W-Ra90 configuration for your project.
Frequently Asked Questions
What is the 10mm Dual-Color COB LED Neon Flex 608 LEDs/m used for?
The 10mm Dual-Color COB LED Neon Flex 608 LEDs/m is designed for architectural, commercial, furniture and linear lighting applications that require a smooth, consistent light output.
What options can be configured?
Voltage, CCT or color, cable length, connector and packaging can be configured. Refer to the Key Specifications table and contact our team with your project requirements.
Can HST Light customize the 10mm Dual-Color COB LED Neon Flex 608 LEDs/m?
Yes. HST Light supports project-specific voltage, CCT or color, cable length, cable exit direction, connector and OEM requirements.
Can I order samples before mass production?
Yes. HST Light supports pre-production sample verification of key specifications and appearance before volume orders.
