24V SMD2835 240 LEDs/m LED Strip

Name: 24V SMD2835 240 LEDs/m LED Strip
Brand: HST Light
SKU: HST-SMD2835-240-10-DC24V-15.36W-Ra90

24V DC · 10 mm PCB · 15.36 W/m · ≈1536 lm/m · 25 mm Cut

Model: Model

HST Light’s 240 LEDs/m SMD2835 LED Strip is shown here with the existing HST-SMD2835-240-10-DC24V-15.36W-Ra90 reference model for professional B2B lighting projects. Both Ra80 and Ra90 CRI versions can be supplied with 24V DC, 10mm PCB, 15.36 W/m and a 25mm cutting length. The published luminous output is a reference for the Ra90 model shown; please confirm the output of the Ra80 option before ordering.

High-density SMD2835 LED strip with 240 LEDs/m for bright, uniform commercial and architectural linear lighting.

Request a Quote Request a Sample

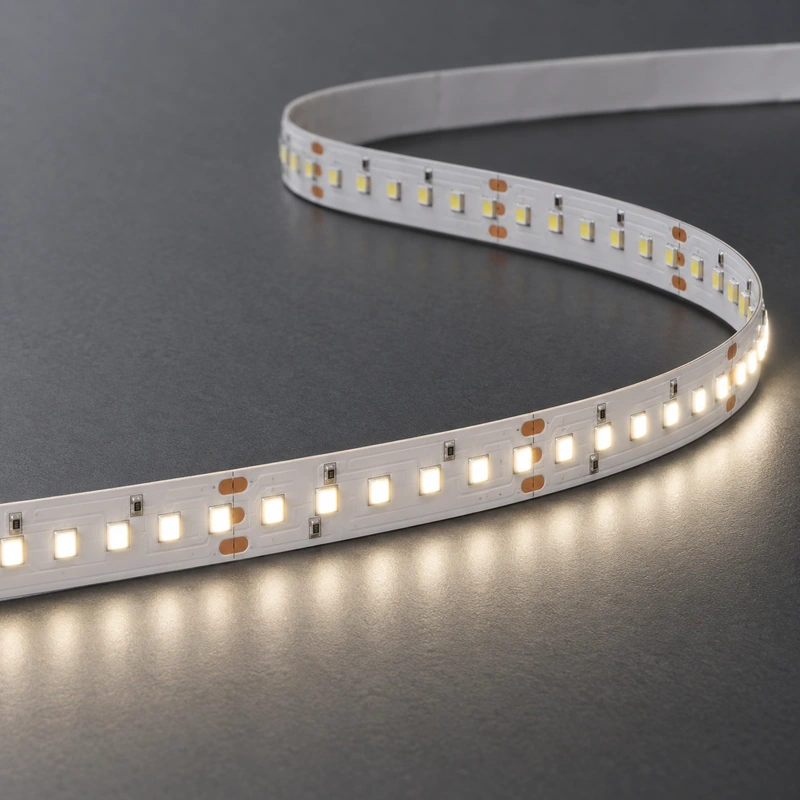

24V SMD2835 240 LEDs/m LED Strip - main product image

Key Specifications

Model	HST-SMD2835-240-10-DC24V-15.36W-Ra90
LED Type	SMD2835
LED Density	240 LEDs/m
Input Voltage	24V DC
Power	15.36 W/m
PCB Width	10 mm
CRI	Ra80 / Ra90 options (Ra90 model shown)
Luminous Flux	Approx. 1536 lm/m (Ra90 reference model)
Efficiency	Approx. 100 lm/W (Ra90 reference model)
Cutting Length	25 mm
Max Run Length	5 m
Copper Thickness	25/25

Product Features

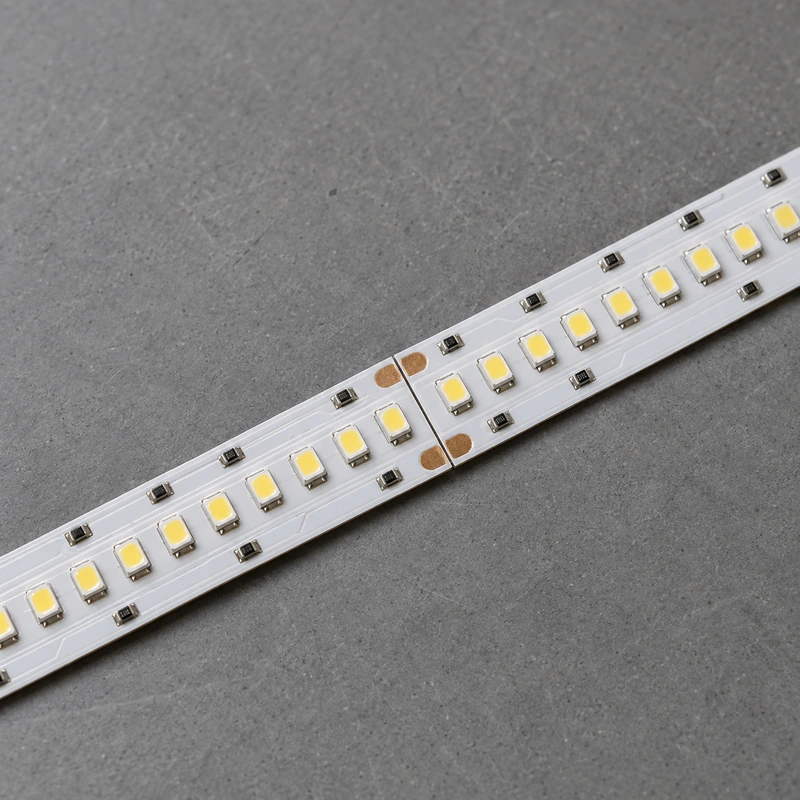

240 LEDs/m High Density

The higher LED density supports smoother visual output in shallow aluminum profiles and close-view installations.

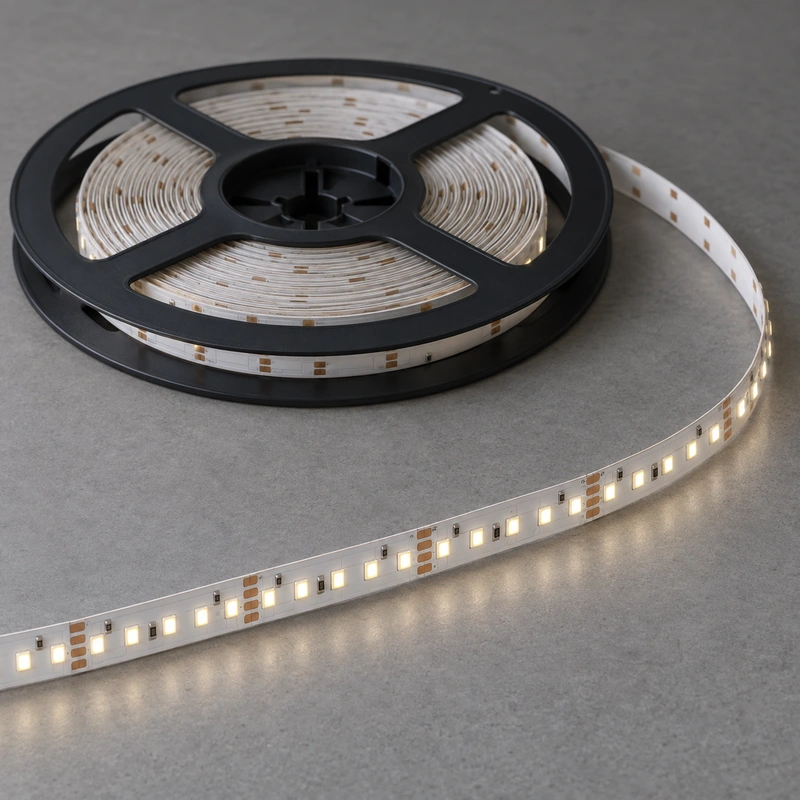

High-Output 24V Platform

At 15.36W/m and approximately 1536 lm/m, this model is suited to brighter architectural and commercial lighting.

Why Choose a 240 LEDs/m SMD2835 LED Strip?

The 240 LEDs/m SMD2835 LED Strip combines the confirmed specifications of model HST-SMD2835-240-10-DC24V-15.36W-Ra90 with a product format designed for the applications shown on this page, including commercial ceilings and retail displays. Its main strengths include 240 LEDs/m, DC24V and available Ra80 or Ra90 CRI options. Additional project-relevant features include a 10mm PCB and 25mm cut. The approximately 1536 lm/m output is the reference for the Ra90 model shown; Ra80 output should be confirmed for the selected configuration. For project-specific orders, HST Light can review electrical configuration, cable routing, mounting details, operating environment and quantity before mass production.

240 LEDs/m

High-density SMD layout.

DC24V

Professional system voltage.

Ra80 / Ra90

Choose Ra80 or Ra90 to suit the project.

1536 lm/m

High output.

10mm PCB

Common profile format.

25mm Cut

Practical project segmentation.

Applications

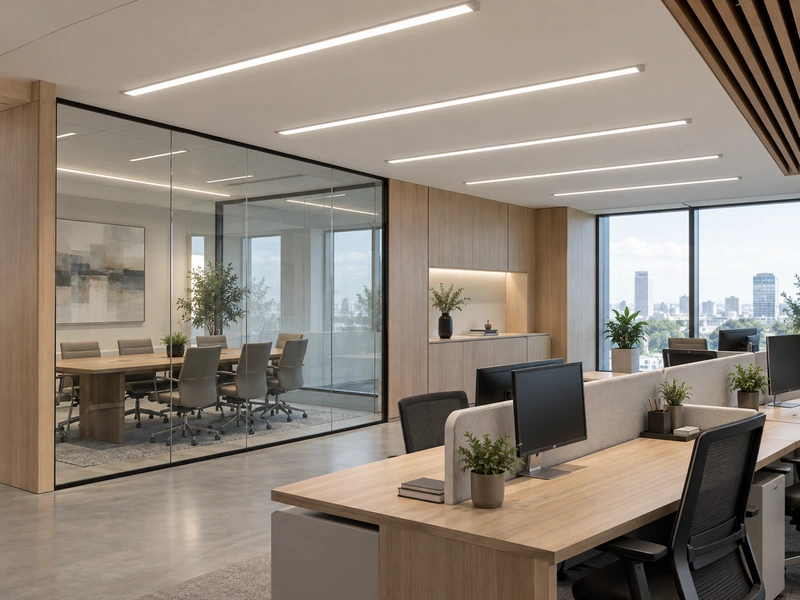

Commercial Ceilings

For stronger linear output.

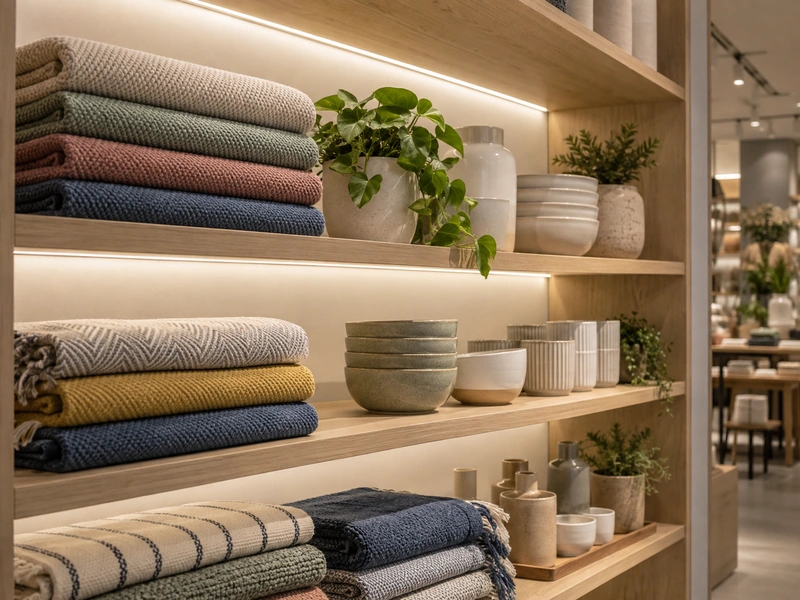

Retail Displays

For high brightness.

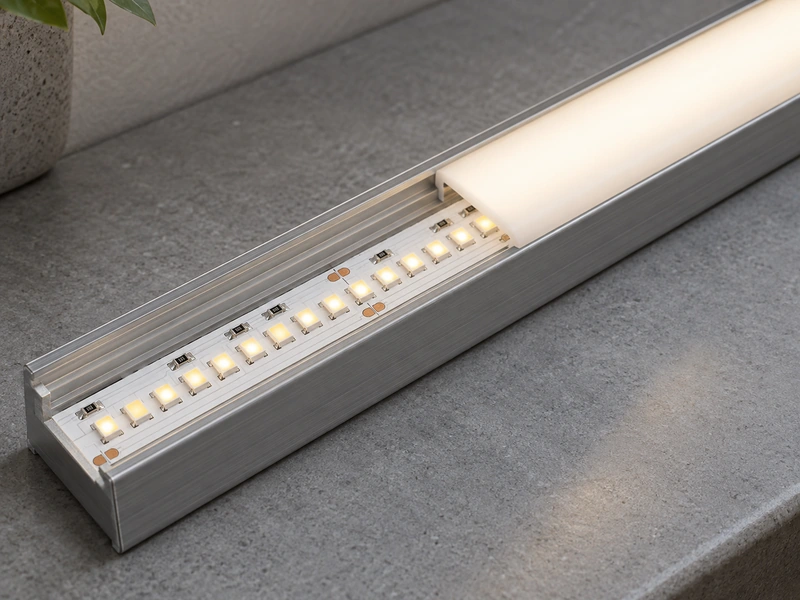

Architectural Profiles

For aluminum systems.

Cabinet Lighting

For brighter furniture applications.

Customization Options

HST Light can support project-specific voltage, CCT or color configuration, cable length, cable exit direction, connector configuration, waterproof version where applicable, packaging and other OEM requirements based on the confirmed LED strip platform.

For project evaluation, please provide the required voltage, CCT or color, installation length, operating environment, cable direction and project quantity.

Need a customized version?

Discuss Your Project →

Technical & OEM Support

240 LEDs/m SMD2835 LED Strip projects should be evaluated using the actual production configuration, installation environment, cable routing, mounting structure and project requirements before mass production.

HST Light can support pre-production sample verification of the confirmed key specifications, luminous appearance, electrical performance and installation compatibility.

For precision or high-volume projects, the actual production sample should be confirmed before finalizing concealed structures, grooves, mounting components, control systems or power-feed layouts.

Confirm the final power supply, installation length, cable size, connection method and mounting environment before installation.

For longer low-voltage runs, voltage drop and thermal conditions should be evaluated using the actual project configuration rather than relying only on nominal strip specifications.

Where aluminum profiles or enclosed mounting structures are used, verify fit, heat dissipation and cable routing with the production sample before volume installation.

How We Validate Custom LED Strips Before Mass Production →

Need a 240 LEDs/m SMD2835 LED Strip?

Send us your required voltage, CCT or color, installation length, operating environment, cable direction and quantity. Our team will help evaluate the suitable HST-SMD2835-240-10-DC24V-15.36W-Ra90 configuration for your project.

Request a Quote Request a Sample

Frequently Asked Questions

What is the 24V SMD2835 240 LEDs/m LED Strip used for?

The 24V SMD2835 240 LEDs/m LED Strip is designed for architectural, commercial, furniture and linear lighting applications that require a smooth, consistent light output.

What options can be configured?

Both Ra80 and Ra90 CRI options are available for this 24V, 10mm PCB, 15.36 W/m, 25mm-cut SMD2835 strip. Other project options include CCT or color, cable length, connectors and packaging. The output figures shown on this page refer to the listed Ra90 model; please ask our team to confirm Ra80 output before ordering.

Can HST Light customize the 24V SMD2835 240 LEDs/m LED Strip?

Yes. HST Light supports project-specific voltage, CCT or color, cable length, cable exit direction, connector and OEM requirements.

Can I order samples before mass production?

Yes. HST Light supports pre-production sample verification of key specifications and appearance before volume orders.
