10mm Square Ultra-Slim COB LED Neon Flex

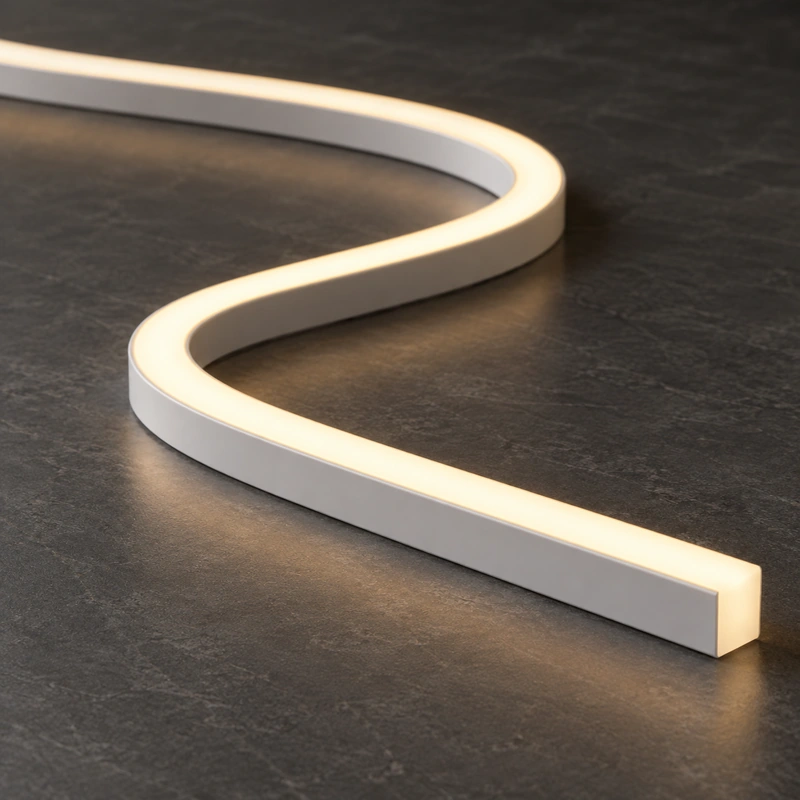

10mm Square Ultra-Slim COB LED Neon Flex - main product image

Key Specifications

ModelHST-NF10-12W-Ra90
LED TechnologyCOB
LED Density480 LEDs/m
Input Voltage12V DC / 24V DC
Power12 W/m
Profile Reference10 mm
CCT2700K / 3000K / 4000K / 6000K
CRIRa 90
Luminous FluxApprox. 960 lm/m
EfficiencyApprox. 70–90 lm/W
Cutting Length25 / 50 mm
IP RatingIP67
Special FeatureSquare / Ultra-Slim / Hollow / Dot-Free

Product Features

Square Ultra-Slim Neon Profile

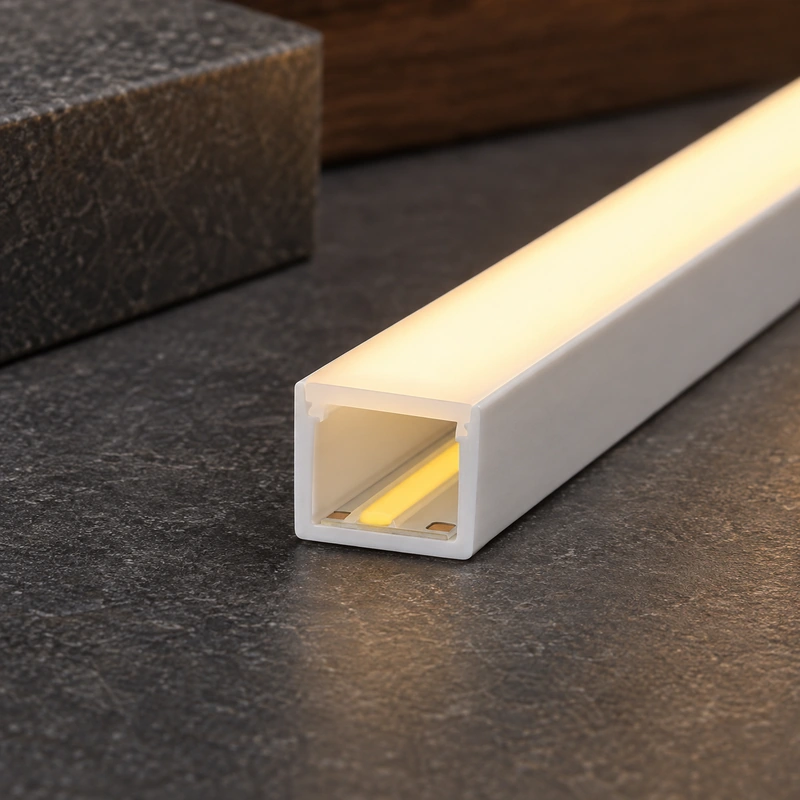

Square Ultra-Slim Neon Profile - detail

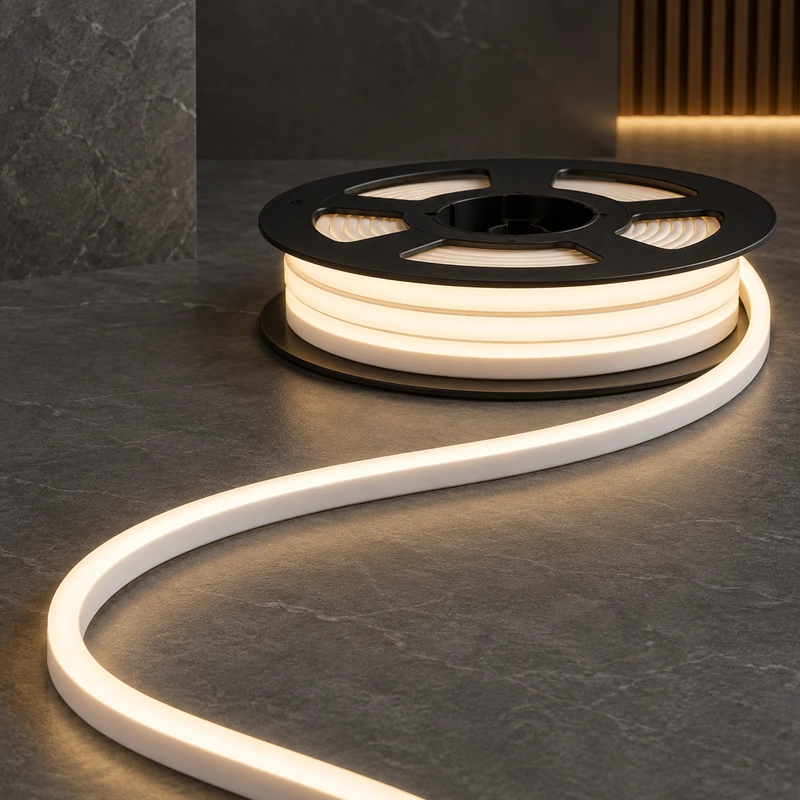

Approx. 960 lm/m COB Output - reel

Approx. 960 lm/m COB Output

Why Choose a 10mm Square LED Neon Flex?

The 10mm Square LED Neon Flex combines the confirmed specifications of model HST-NF10-12W-Ra90 with a product format designed for the applications shown on this page, including architectural coves and hospitality lighting. The main strengths of this 10mm Square LED Neon Flex include 960 lm/m, 480 LEDs/m and Square Profile. Additional project-relevant features include Ultra-Slim, Ra90, IP67. For project-specific orders, HST Light can review this 10mm Square LED Neon Flex and its electrical configuration, cable routing, mounting details, operating environment and quantity before mass production.

960 lm/m

Useful project output.

480 LEDs/m

Dense COB source.

Square Profile

Modern visual form.

Ultra-Slim

Compact product style.

Ra90

Good color rendering.

IP67

Protected construction.

10mm LED Neon Flex Options

ProductLight / ColorStructureIP RatingMain Focus
10mm RGB LED Neon FlexRGBSquare / Ultra-Slim / HollowIP67Smooth color-changing light
10mm Dual-Color LED Neon Flex3000K / 6000KSquare / Ultra-Slim / HollowIP67Two white-light options
10mm Square LED Neon FlexSingle ColorSquare / Ultra-Slim / HollowIP67Standard square white-light platform
10mm IP68 LED Neon FlexSingle ColorSquare / Clear / SolidIP68Clear solid high-protection profile
10mm Semi-Round LED Neon FlexSingle ColorSemi-Round / Clear / HollowIP67Curved visible light-emitting surface

Available Color Temperatures

2700K

Soft warm white for decorative, hospitality and premium furniture applications.

3000K

Warm white for cabinetry, retail displays, hospitality and architectural details.

4000K

Neutral white for showcases, commercial fixtures and modern interiors.

6000K

Cool white for technical displays and contemporary commercial environments.

Applications

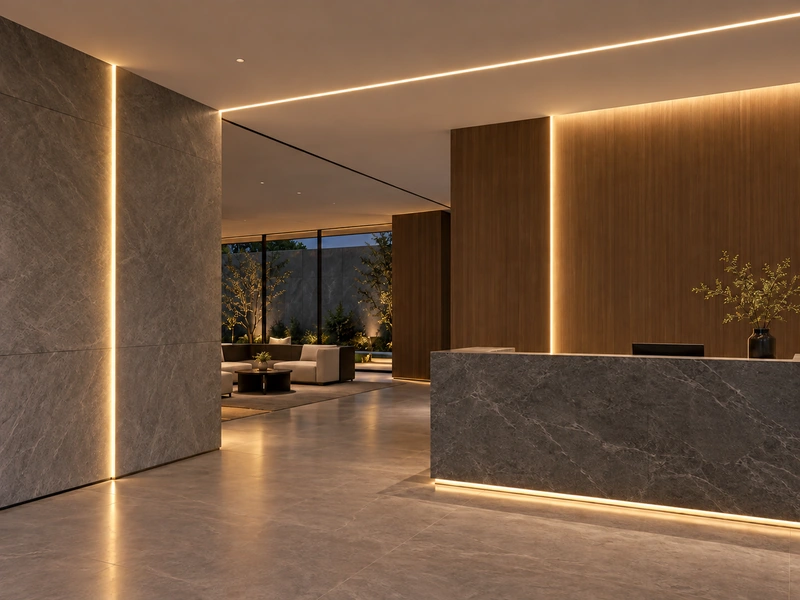

10mm Square Ultra-Slim COB LED Neon Flex - Architectural Coves

Architectural Coves

For continuous linear light with this 10mm Square LED Neon Flex.

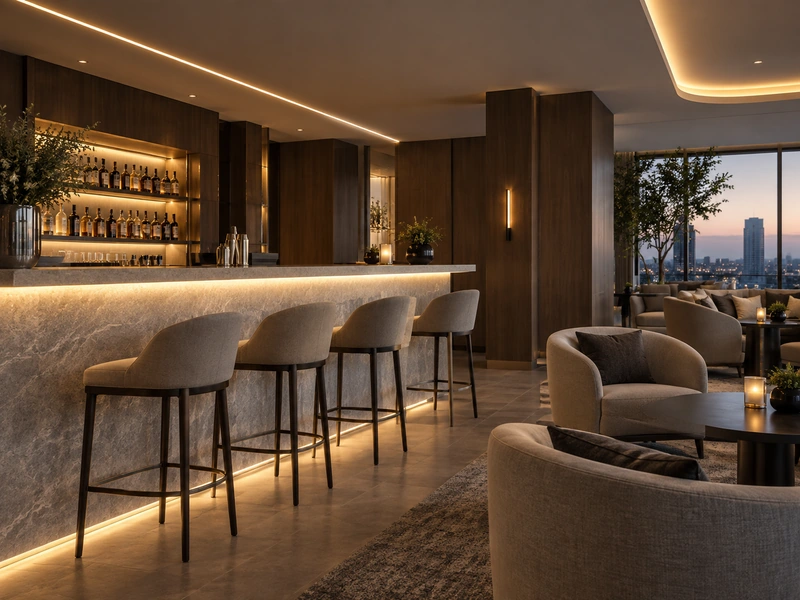

10mm Square Ultra-Slim COB LED Neon Flex - Hospitality Lighting

Hospitality Lighting

For premium interiors with this 10mm Square LED Neon Flex.

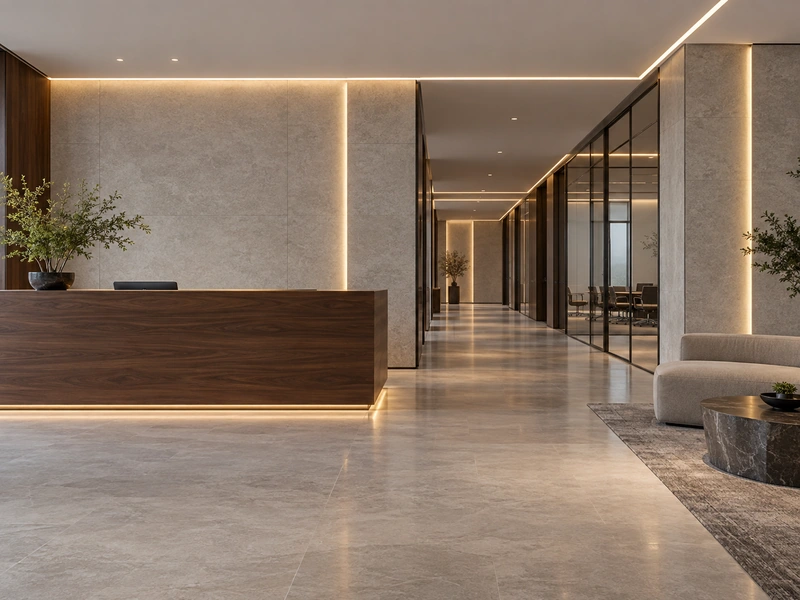

10mm Square Ultra-Slim COB LED Neon Flex - Retail Showrooms

Retail Showrooms

For clean visible lines with this 10mm Square LED Neon Flex.

10mm Square Ultra-Slim COB LED Neon Flex - Commercial Interiors

Commercial Interiors

For general project lighting with this 10mm Square LED Neon Flex.

Customization Options

HST Light can support project-specific voltage, CCT or color configuration, cable length, cable exit direction, connector configuration, mounting accessories, packaging and other OEM requirements based on this Neon Flex platform.

For precision projects, please provide the available installation space, required voltage, CCT or color, product length, cable direction, operating environment and project quantity so our team can evaluate the suitable configuration.

Need a customized version?

Technical & OEM Support

10mm Square LED Neon Flex projects should be evaluated using the actual production configuration, installation environment, cable routing, mounting structure and project requirements before mass production.

HST Light can support pre-production sample verification of the confirmed key specifications, luminous appearance, electrical performance and installation compatibility.

For precision or high-volume projects, the actual production sample should be confirmed before finalizing concealed structures, grooves, mounting components, control systems or power-feed layouts.

The Neon Flex itself is specified as IP67, but the protection level of the complete installation also depends on cable entries, connectors, cut ends and sealing workmanship.

For moisture-prone installations, all connection areas should be properly sealed according to the actual project environment.

Avoid excessive pulling, twisting, sharp folding or bending beyond the permitted direction and radius of the final production configuration.

For precision furniture, showcase, recessed or fixture projects, sample fitting is recommended before producing large quantities of grooves or mounting components.

How We Validate Custom LED Strips Before Mass Production →

Ordering Information

  • MOQ: No minimum order for this standard product – sample orders are welcome
  • Sample Lead Time: 3-5 days
  • Bulk Order Lead Time: 10-20 days
  • Warranty: 3 Years (Standard Series) / 5 Years (Premium Series)
  • Compliance: CE / RoHS – test reports and certificates available on request
  • Customization: CCT, CRI, length, waterproof rating and packaging can be customized; OEM projects are quoted case by case
  • Payment & Shipment: To be confirmed per order – contact us for details

Frequently Asked Questions

What is the 10mm Square Ultra-Slim COB LED Neon Flex used for?

The 10mm Square Ultra-Slim COB LED Neon Flex is designed for architectural, commercial, furniture and linear lighting applications that require a smooth, consistent light output.

What options can be configured?

Voltage, CCT or color, cable length, connector and packaging can be configured. Refer to the Key Specifications table and contact our team with your project requirements.

Can HST Light customize the 10mm Square Ultra-Slim COB LED Neon Flex?

Yes. HST Light supports project-specific voltage, CCT or color, cable length, cable exit direction, connector and OEM requirements.

Can I order samples before mass production?

Yes. HST Light supports pre-production sample verification of key specifications and appearance before volume orders.
