3mm Arc-Surface Solid COB LED Neon Flex

Name: 3mm Arc-Surface Solid COB LED Neon Flex
Brand: HST Light
SKU: HST-NF0305

12V DC / 24V DC · 3 mm · 5 W/m · ≈225 lm/m · 12.5 / 25 mm Cut

Model: Model

HST Light’s 3mm Solid LED Neon Flex is based on the confirmed HST-NF0305 platform for professional B2B lighting projects.

Ultra-compact 3mm solid COB LED Neon Flex with an arc-shaped light-emitting surface, 480 LEDs/m and smooth dot-free illumination.

Request a Quote Request a Sample

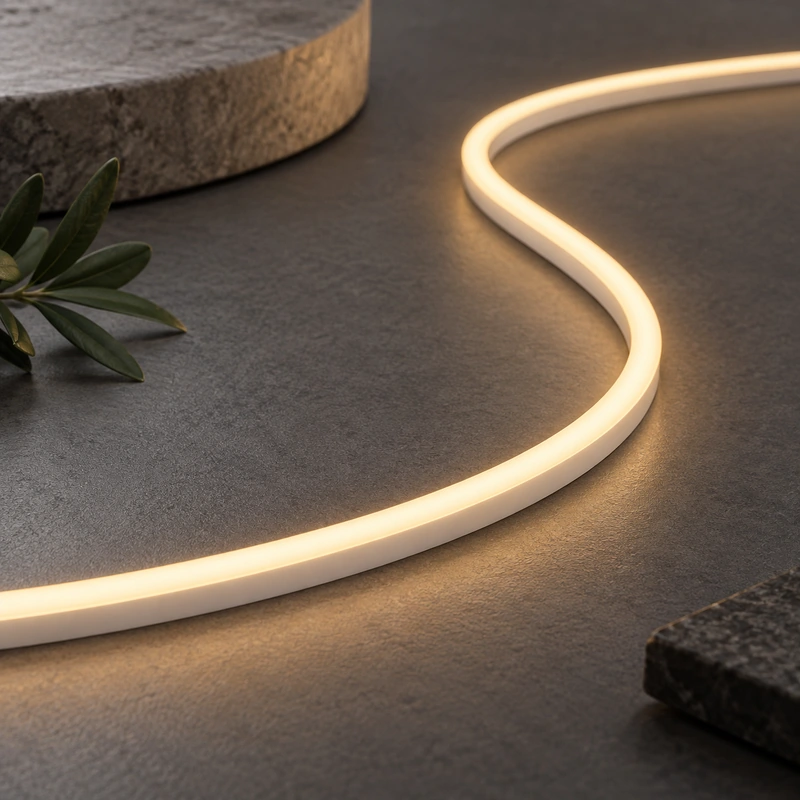

3mm Arc-Surface Solid COB LED Neon Flex - main product image

Key Specifications

Model	HST-NF0305
LED Technology	COB
LED Density	480 LEDs/m
Input Voltage	12V DC / 24V DC
Power	5 W/m
Profile Reference	3 mm
CCT	2700K / 3000K / 4000K / 6000K
CRI	Ra 90
Luminous Flux	Approx. 225 lm/m
Efficiency	Approx. 40–50 lm/W
Cutting Length	12.5 / 25 mm
IP Rating	IP67
Special Feature	Arc Surface / Solid / Dot-Free

Product Features

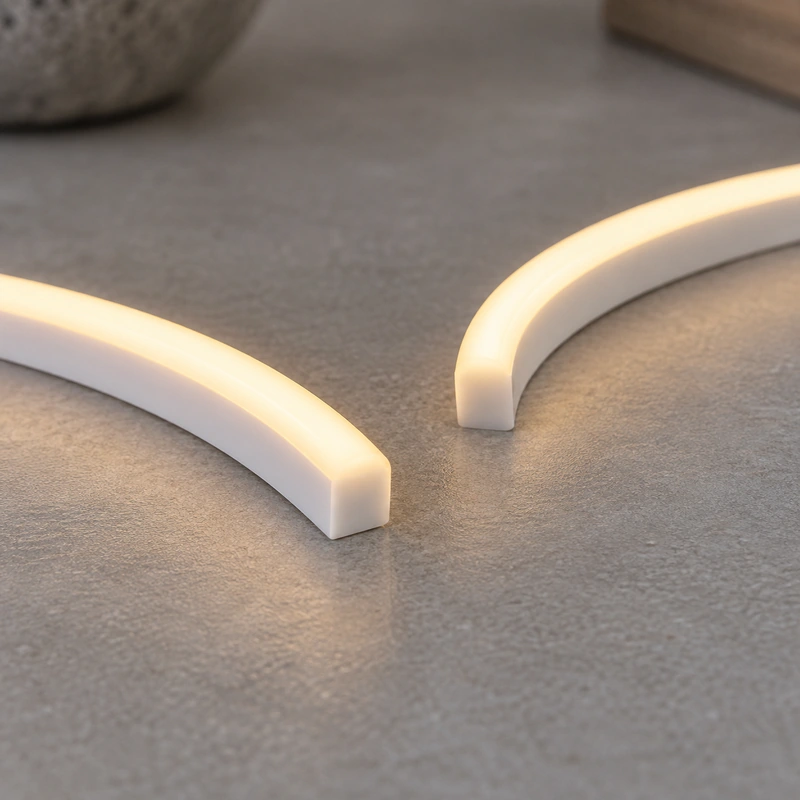

Arc-Surface Solid Construction

The solid construction uses an arc-shaped emitting surface to create a defined curved light line in a miniature profile.

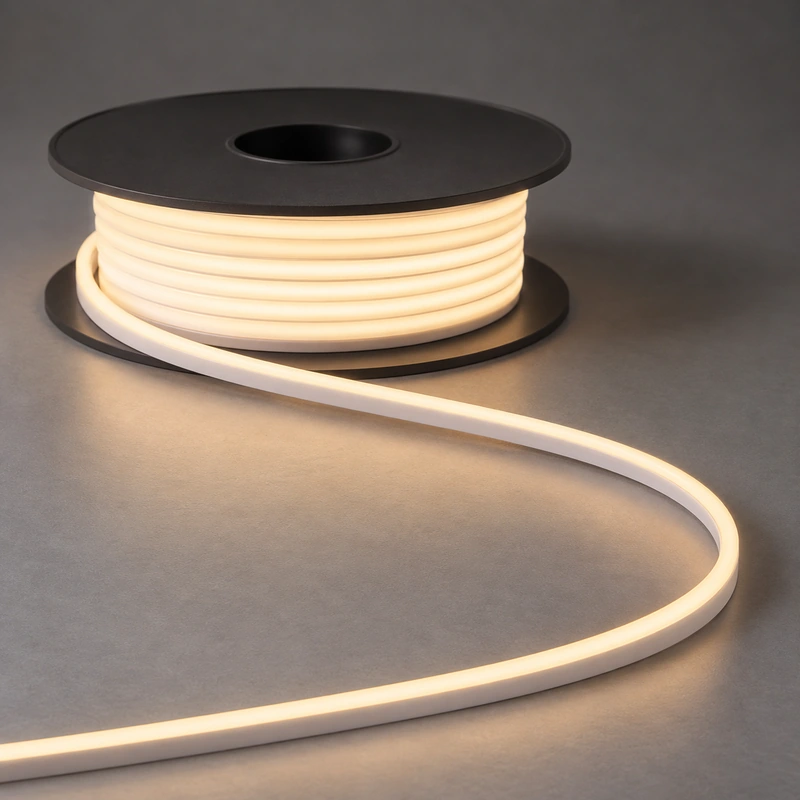

High-Density Mini COB

The 480 LEDs/m COB source creates smooth continuous white light while keeping the product compact.

Why Choose a 3mm Solid LED Neon Flex?

The 3mm Solid LED Neon Flex combines the confirmed specifications of model HST-NF0305 with a product format designed for the applications shown on this page, including premium furniture and jewelry displays. Its main strengths include 3mm Profile, Arc Surface and Solid. Additional project-relevant features include 480 LEDs/m, Ra90, IP67. For project-specific orders, HST Light can review electrical configuration, cable routing, mounting details, operating environment and quantity before mass production.

3mm Profile

Miniature size.

Arc Surface

Defined curved light line.

Solid

Protected body construction.

480 LEDs/m

Dense COB source.

Ra90

Good color quality.

IP67

Protected configuration.

Mini LED Neon Flex Profile Options

Product	Profile Reference	Light-Emitting Form	Main Focus
5mm Side-View LED Neon Flex	5mm	Side-View / Ultra-Slim	Compact directional installation
3mm Mini LED Neon Flex	3mm	Hemispherical / Milky	Miniature rounded visible light
3mm Solid LED Neon Flex	3mm	Arc Surface / Solid	Defined curved light in a solid mini profile

Available Color Temperatures

2700K

Soft warm white for decorative, hospitality and premium furniture applications.

3000K

Warm white for cabinetry, retail displays, hospitality and architectural details.

4000K

Neutral white for showcases, commercial fixtures and modern interiors.

6000K

Cool white for technical displays and contemporary commercial environments.

Applications

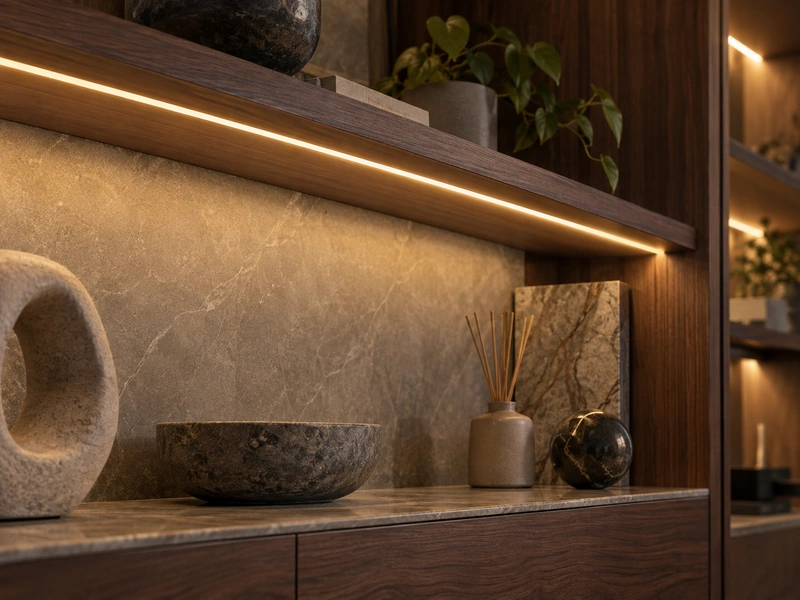

Premium Furniture

For refined details.

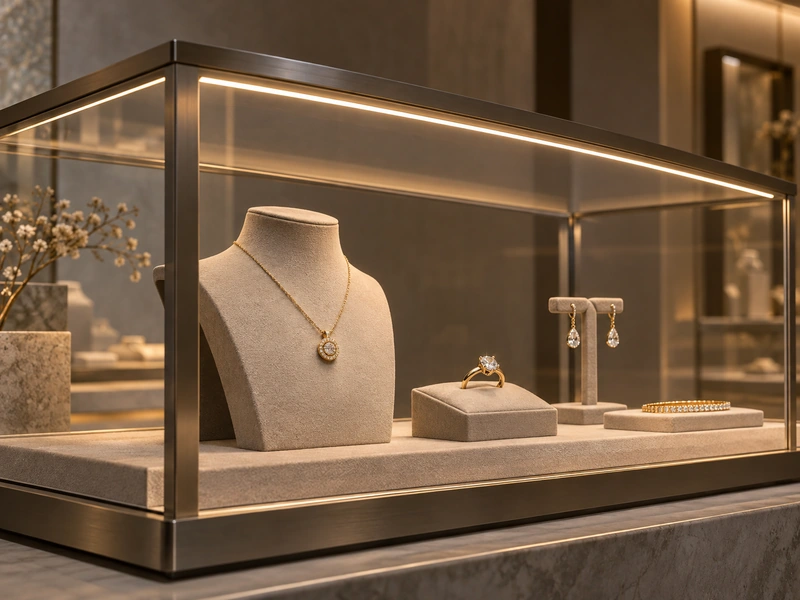

Jewelry Displays

For close-view lighting.

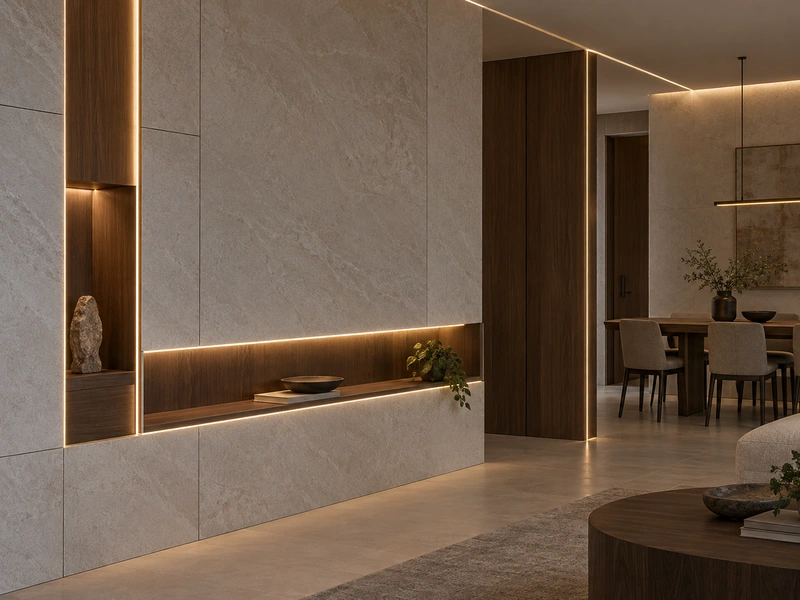

Architectural Details

For miniature curved lines.

Custom Fixtures

For compact integrated designs.

Customization Options

HST Light can support project-specific voltage, CCT or color configuration, cable length, cable exit direction, connector configuration, mounting accessories, packaging and other OEM requirements based on this Neon Flex platform.

For precision projects, please provide the available installation space, required voltage, CCT or color, product length, cable direction, operating environment and project quantity so our team can evaluate the suitable configuration.

Need a customized version?

Discuss Your Project →

Technical & OEM Support

3mm Solid LED Neon Flex projects should be evaluated using the actual production configuration, installation environment, cable routing, mounting structure and project requirements before mass production.

HST Light can support pre-production sample verification of the confirmed key specifications, luminous appearance, electrical performance and installation compatibility.

For precision or high-volume projects, the actual production sample should be confirmed before finalizing concealed structures, grooves, mounting components, control systems or power-feed layouts.

The Neon Flex itself is specified as IP67, but the protection level of the complete installation also depends on cable entries, connectors, cut ends and sealing workmanship.

For moisture-prone installations, all connection areas should be properly sealed according to the actual project environment.

Avoid excessive pulling, twisting, sharp folding or bending beyond the permitted direction and radius of the final production configuration.

For precision furniture, showcase, recessed or fixture projects, sample fitting is recommended before producing large quantities of grooves or mounting components.

How We Validate Custom LED Strips Before Mass Production →

Need a 3mm Solid LED Neon Flex?

Send us your required voltage, CCT or color, installation length, operating environment, cable direction and quantity. Our team will help evaluate the suitable HST-NF0305 configuration for your project.

Request a Quote Request a Sample

Frequently Asked Questions

What is the 3mm Arc-Surface Solid COB LED Neon Flex used for?

The 3mm Arc-Surface Solid COB LED Neon Flex is designed for architectural, commercial, furniture and linear lighting applications that require a smooth, consistent light output.

What options can be configured?

Voltage, CCT or color, cable length, connector and packaging can be configured. Refer to the Key Specifications table and contact our team with your project requirements.

Can HST Light customize the 3mm Arc-Surface Solid COB LED Neon Flex?

Yes. HST Light supports project-specific voltage, CCT or color, cable length, cable exit direction, connector and OEM requirements.

Can I order samples before mass production?

Yes. HST Light supports pre-production sample verification of key specifications and appearance before volume orders.
