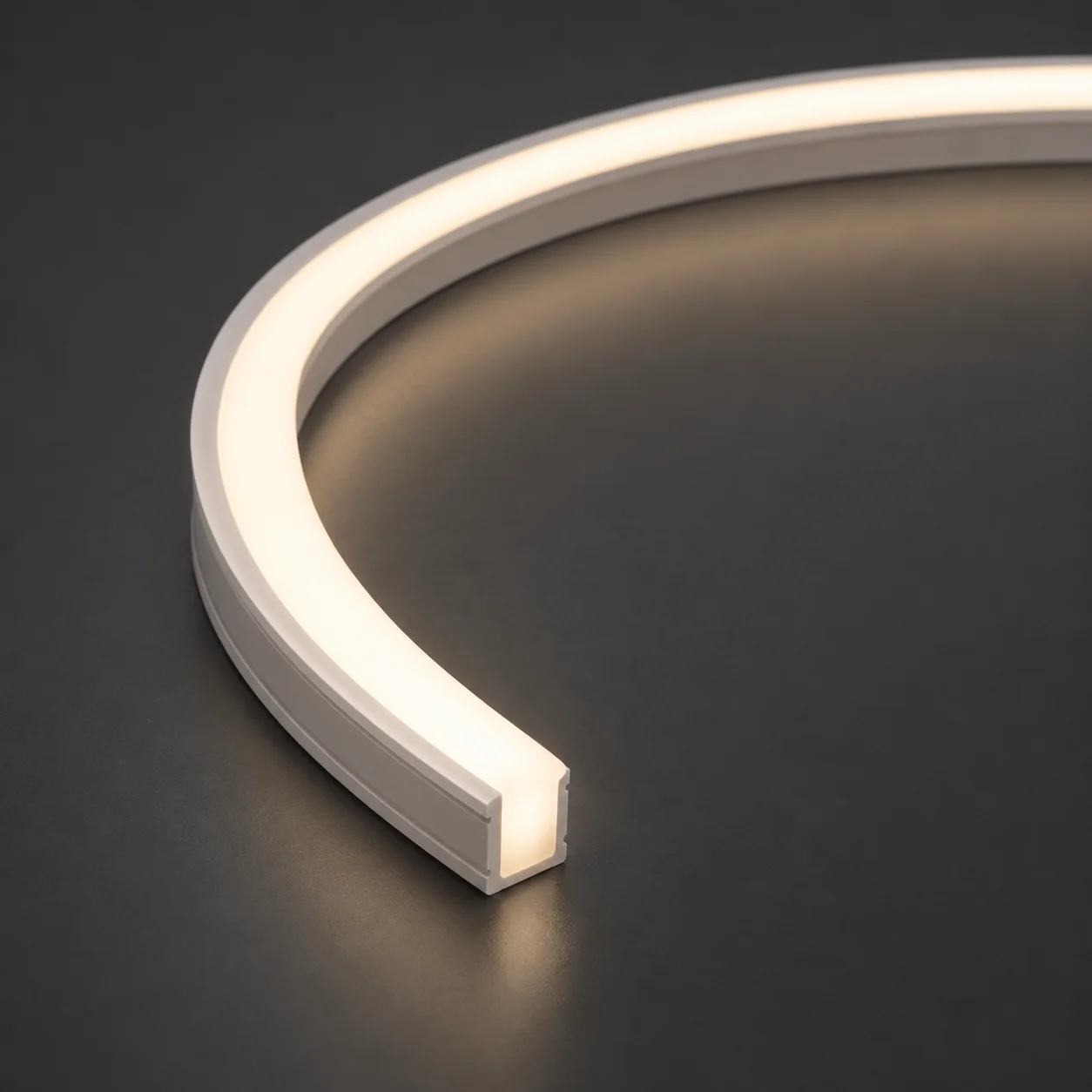

8mm Recessed COB LED Neon Flex
12V DC / 24V DC · 8 mm · 9 W/m · ≈720 lm/m · 25 / 50 mm Cut
Model: Model
HST Light’s 8mm Recessed LED Neon Flex is based on the confirmed HST-NF1207 platform for professional B2B lighting projects.
Recessed COB LED Neon Flex with 480 LEDs/m, DC12V / DC24V operation and smooth dot-free illumination for integrated architectural, furniture and commercial linear lighting.
Key Specifications
| Model | HST-NF1207 |
| LED Technology | COB |
| LED Density | 480 LEDs/m |
| Input Voltage | 12V DC / 24V DC |
| Power | 9 W/m |
| Profile Reference | 8 mm |
| CCT | 2700K / 3000K / 4000K / 6000K |
| CRI | Ra 90 |
| Luminous Flux | Approx. 720 lm/m |
| Efficiency | Approx. 70–90 lm/W |
| Cutting Length | 25 / 50 mm |
| IP Rating | IP67 |
| Special Feature | Hollow / Recessed / Dot-Free |
Product Features

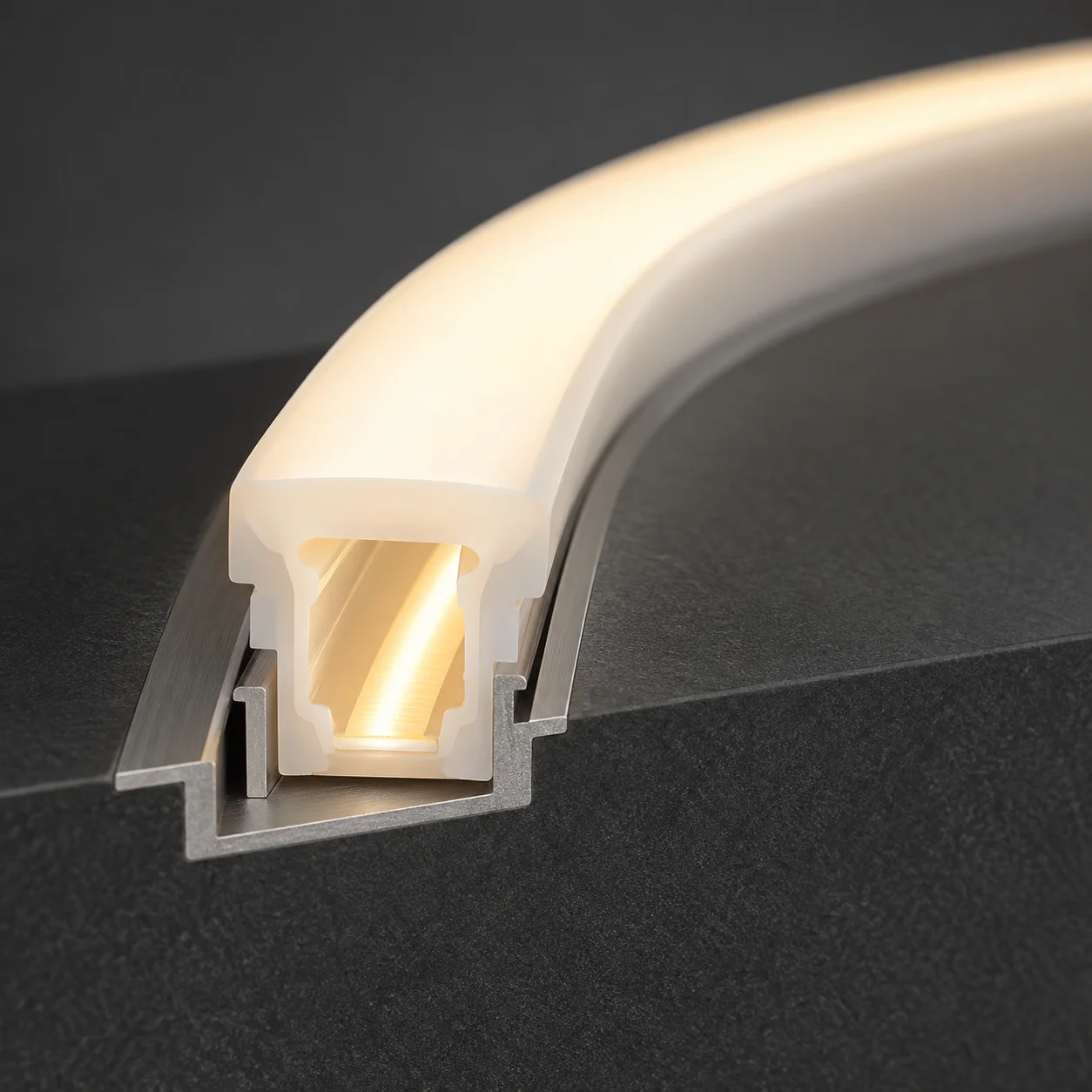

Recessed Installation Design
The recessed construction supports built-in grooves and architectural details for a cleaner, more integrated finished appearance.

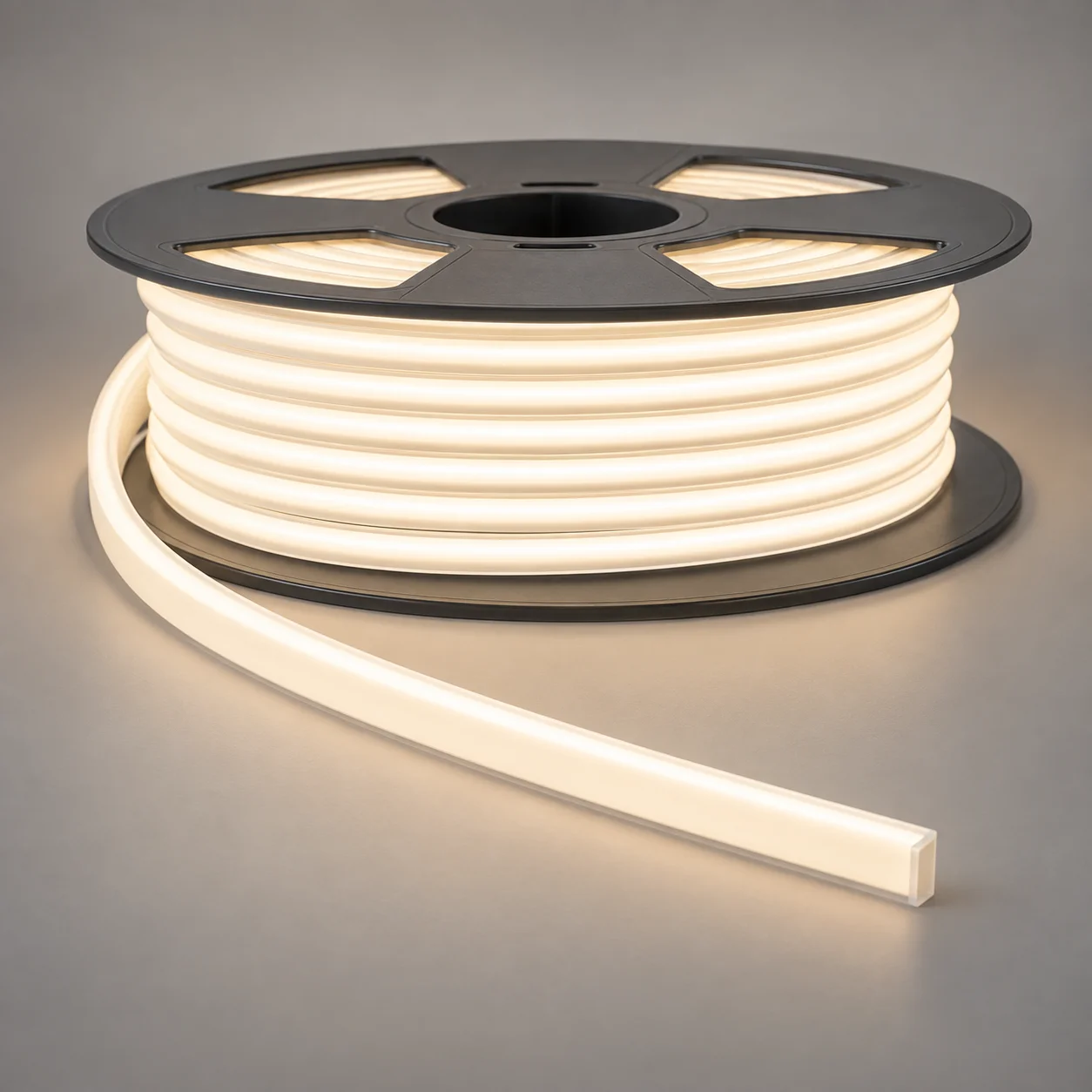

480 LEDs/m COB Light Source
The high-density COB light source provides smooth continuous illumination with reduced visible LED points.
Why Choose an 8mm Recessed LED Neon Flex?
The 8mm Recessed LED Neon Flex combines the confirmed specifications of model HST-NF1207 with a product format designed for the applications shown on this page, including ceiling & wall recesses and furniture lighting. Its main strengths include Recessed, 480 LEDs/m and Ra90. Additional project-relevant features include 720 lm/m, IP67, 12V / 24V. For project-specific orders, HST Light can review electrical configuration, cable routing, mounting details, operating environment and quantity before mass production.
Recessed
Built-in installation concept.
480 LEDs/m
Dense COB light source.
Ra90
Good color rendering.
720 lm/m
Practical output.
IP67
Protected construction.
12V / 24V
Two voltage options.
8mm LED Neon Flex Profile Options
| Product | Voltage | Structure | IP Rating | Main Focus |
|---|---|---|---|---|
| 8mm Solid LED Neon Flex | DC12V / DC24V | Solid / Raised Surface | IP67 | High-output raised visible light |
| 8mm IP68 LED Neon Flex | DC12V / DC24V | Square / Ultra-Slim / Solid | IP68 | Higher-protection compact profile |
| 8mm Recessed LED Neon Flex | DC12V / DC24V | Hollow / Recessed | IP67 | Integrated recessed installation |
| 220V LED Neon Flex | AC220V | Solid / Raised Surface | IP67 | High-voltage project architecture |
Available Color Temperatures
2700K
Soft warm white for decorative, hospitality and premium furniture applications.
3000K
Warm white for cabinetry, retail displays, hospitality and architectural details.
4000K
Neutral white for showcases, commercial fixtures and modern interiors.
6000K
Cool white for technical displays and contemporary commercial environments.
Applications
Ceiling & Wall Recesses
For integrated linear lighting.

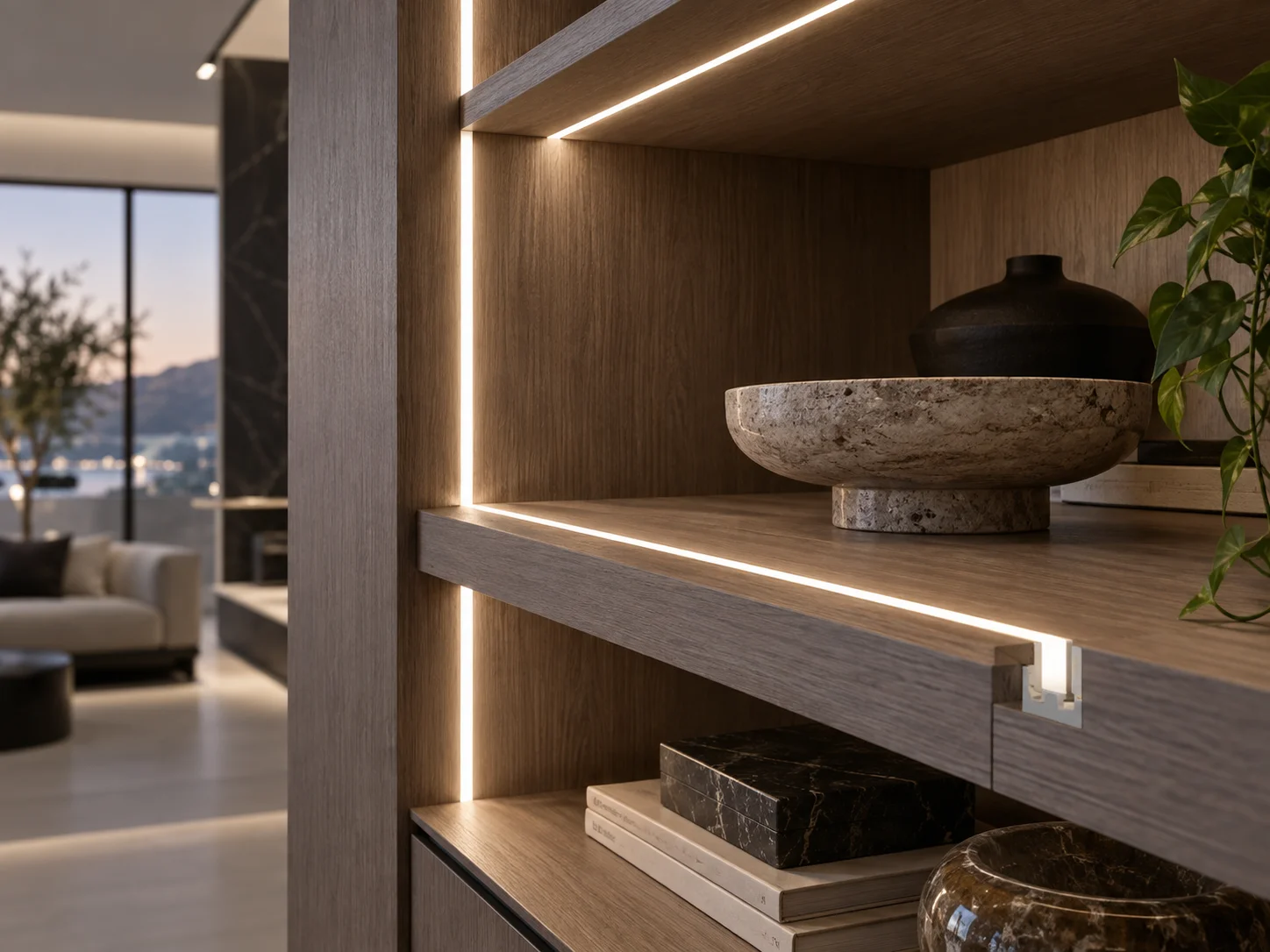

Furniture Lighting
For cabinet and millwork slots.

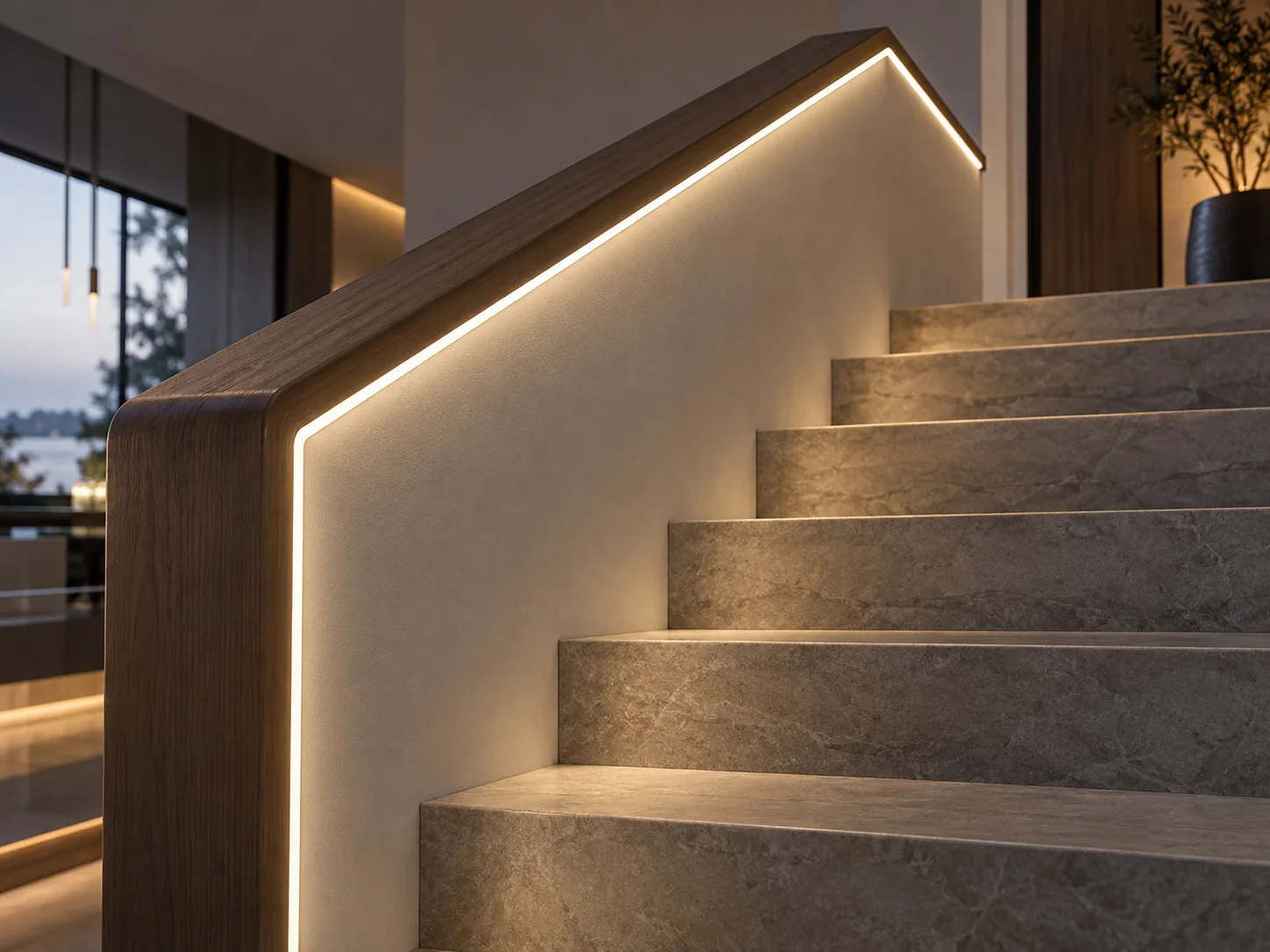

Stair Details
For clean built-in lines.

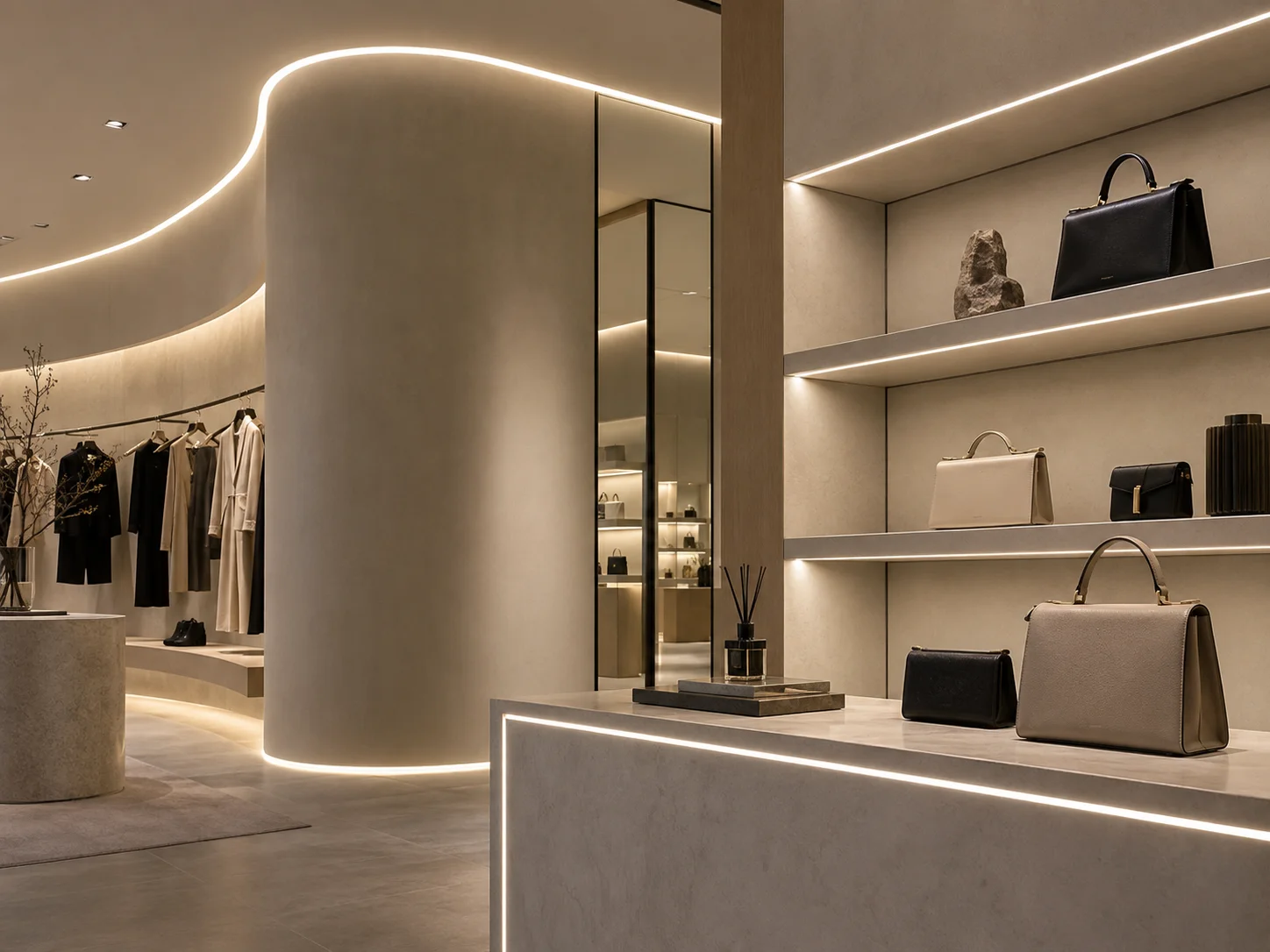

Retail Interiors
For concealed display lighting.
Customization Options
HST Light can support project-specific voltage, CCT or color configuration, cable length, cable exit direction, connector configuration, mounting accessories, packaging and other OEM requirements based on this Neon Flex platform.
For precision projects, please provide the available installation space, required voltage, CCT or color, product length, cable direction, operating environment and project quantity so our team can evaluate the suitable configuration.
Need a customized version?
Technical & OEM Support
8mm Recessed LED Neon Flex projects should be evaluated using the actual production configuration, installation environment, cable routing, mounting structure and project requirements before mass production.
HST Light can support pre-production sample verification of the confirmed key specifications, luminous appearance, electrical performance and installation compatibility.
For precision or high-volume projects, the actual production sample should be confirmed before finalizing concealed structures, grooves, mounting components, control systems or power-feed layouts.
The Neon Flex itself is specified as IP67, but the protection level of the complete installation also depends on cable entries, connectors, cut ends and sealing workmanship.
For moisture-prone installations, all connection areas should be properly sealed according to the actual project environment.
Avoid excessive pulling, twisting, sharp folding or bending beyond the permitted direction and radius of the final production configuration.
For precision furniture, showcase, recessed or fixture projects, sample fitting is recommended before producing large quantities of grooves or mounting components.
Need a 8mm Recessed LED Neon Flex?
Send us your required voltage, CCT or color, installation length, operating environment, cable direction and quantity. Our team will help evaluate the suitable HST-NF1207 configuration for your project.
Frequently Asked Questions
What is the 8mm Recessed COB LED Neon Flex used for?
The 8mm Recessed COB LED Neon Flex is designed for architectural, commercial, furniture and linear lighting applications that require a smooth, consistent light output.
What options can be configured?
Voltage, CCT or color, cable length, connector and packaging can be configured. Refer to the Key Specifications table and contact our team with your project requirements.
Can HST Light customize the 8mm Recessed COB LED Neon Flex?
Yes. HST Light supports project-specific voltage, CCT or color, cable length, cable exit direction, connector and OEM requirements.
Can I order samples before mass production?
Yes. HST Light supports pre-production sample verification of key specifications and appearance before volume orders.
